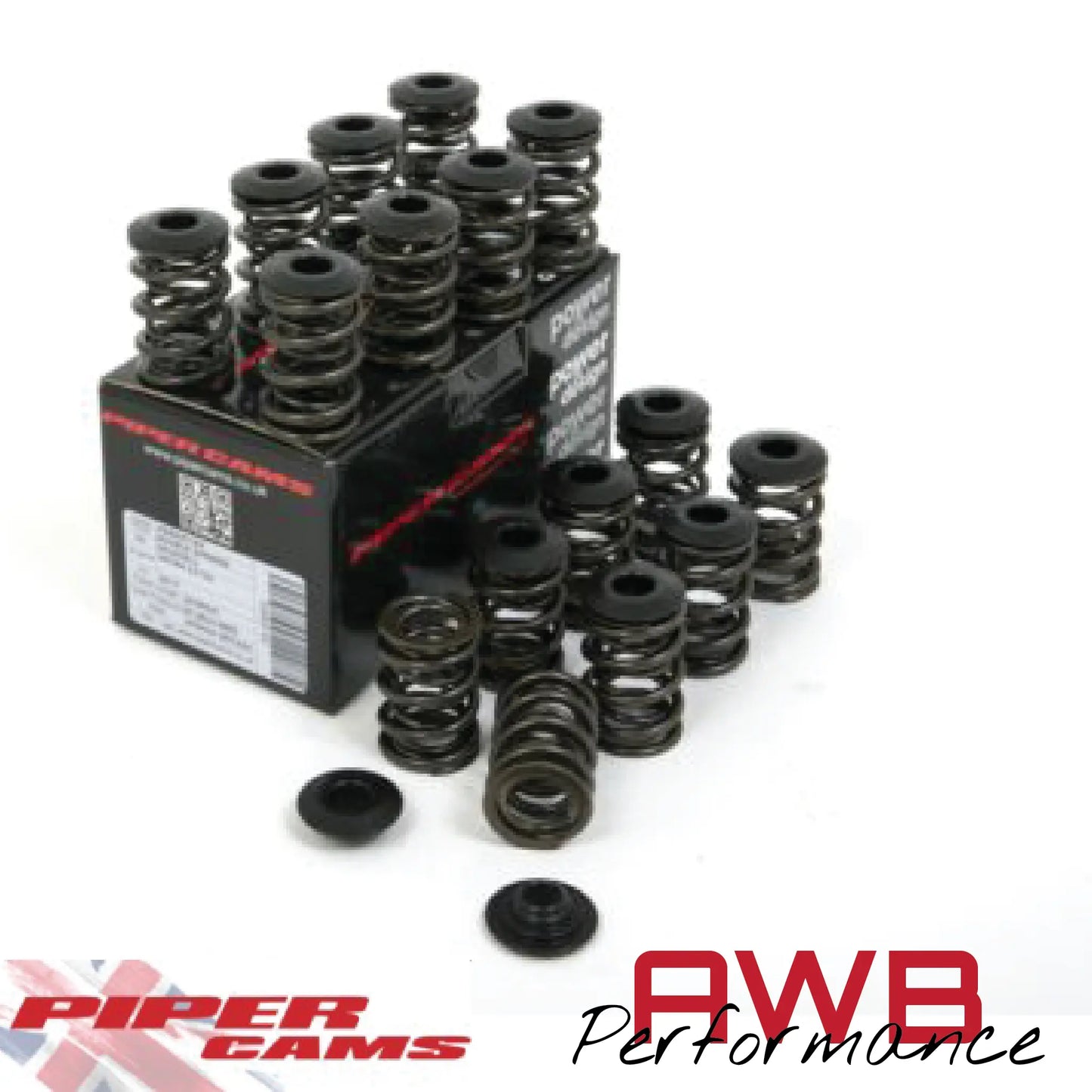

Z20LET, Z20LER, Z20LEL & Z20LEH - 2.0T - Piper Valve Spring Kits

Z20LET, Z20LER, Z20LEL & Z20LEH - 2.0T - Piper Valve Spring Kits

2x Options Available:

Single Valve Spring Kit

Set of single springs – designed to be used with standard O.E spring caps

• Rate - 43N/mm
• Rate - 246Lbf

• Seat Pressure - 38Kg
• Fitted Length - 34mm
• Nominal Internal Diameter - 20.1mm
• Nominal Outside Diameter - 27.9mm
• Crush Height - 21.94mm

Double Valve Spring Kit

Includes a set of double valve springs, SC93 spring caps, SS74 Spring seats & VSOVXR ( valve stem oil seals)

• Rate - 47N/mm
• Rate - 267Lbf

• Seat Pressure - 30Kg
• Fitted Length - 34mm
• Nominal Internal Diameter - 15.2mm
• Nominal Outside Diameter - 27.7mm
• Crush Height - 18.64mm

All Piper products are made to order and therefore take up to 3 weeks to manufacture and dispatch. On the rare occasion we have some in stock, we will dispatch on the same working day.
