Z16LET, A16LET, Z16LER, A16LER, B16LER, A16LES & B16LES - 1.6T - ZRP Billet Crankshafts

Z16LET, A16LET, Z16LER, A16LER, B16LER, A16LES & B16LES - 1.6T - ZRP Billet Crankshafts

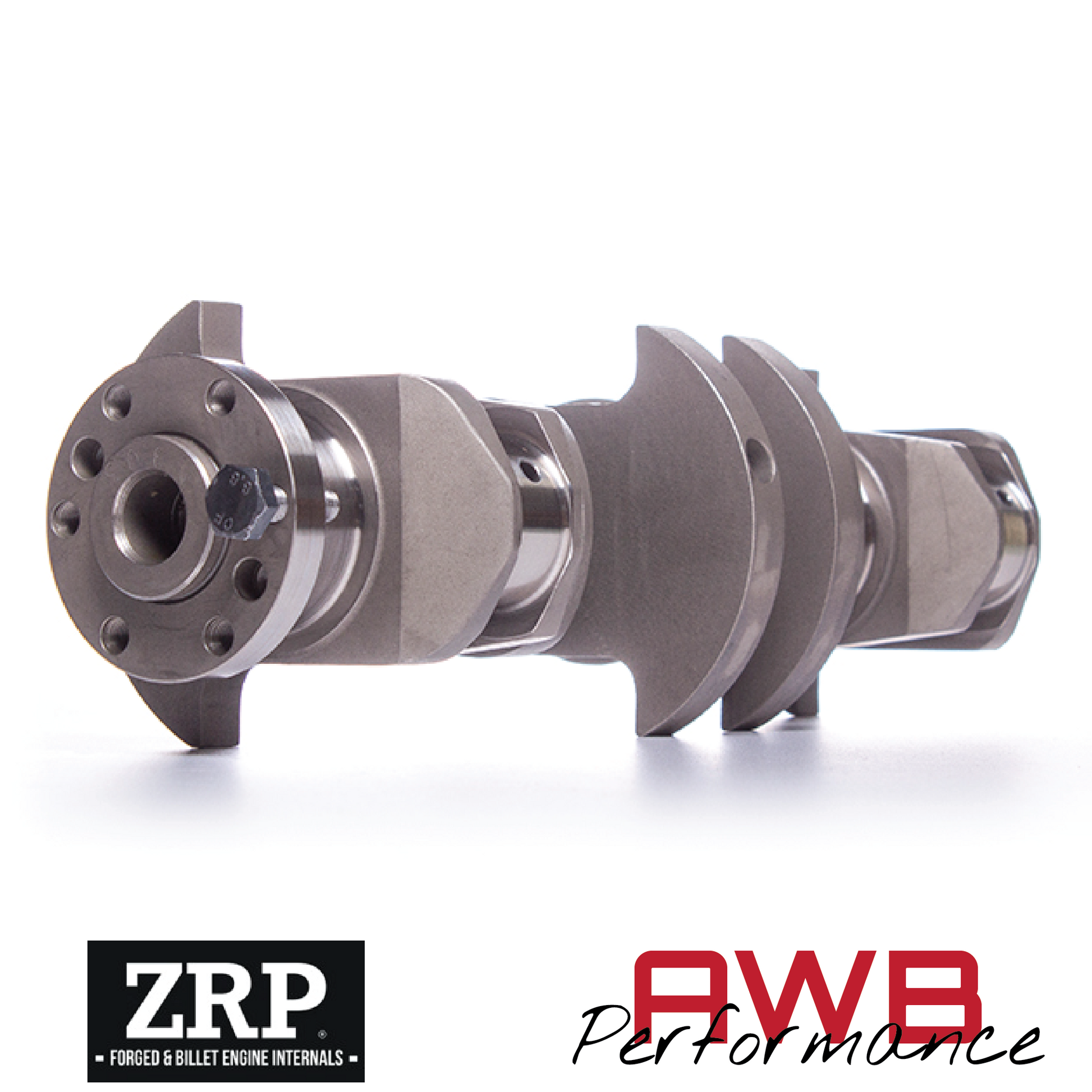

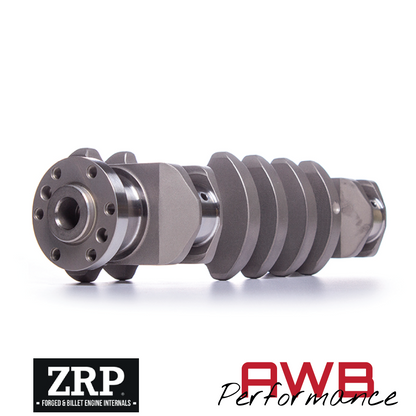

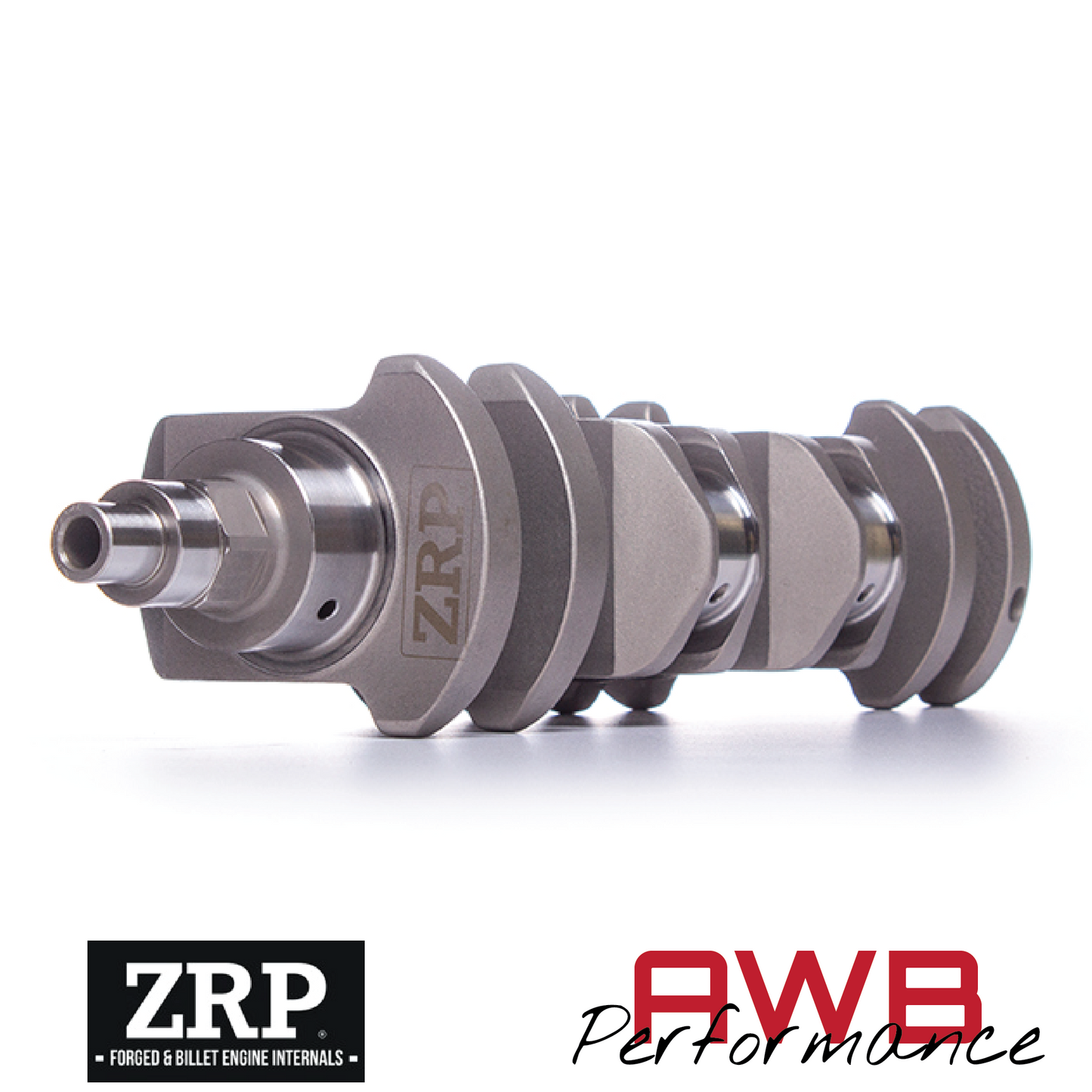

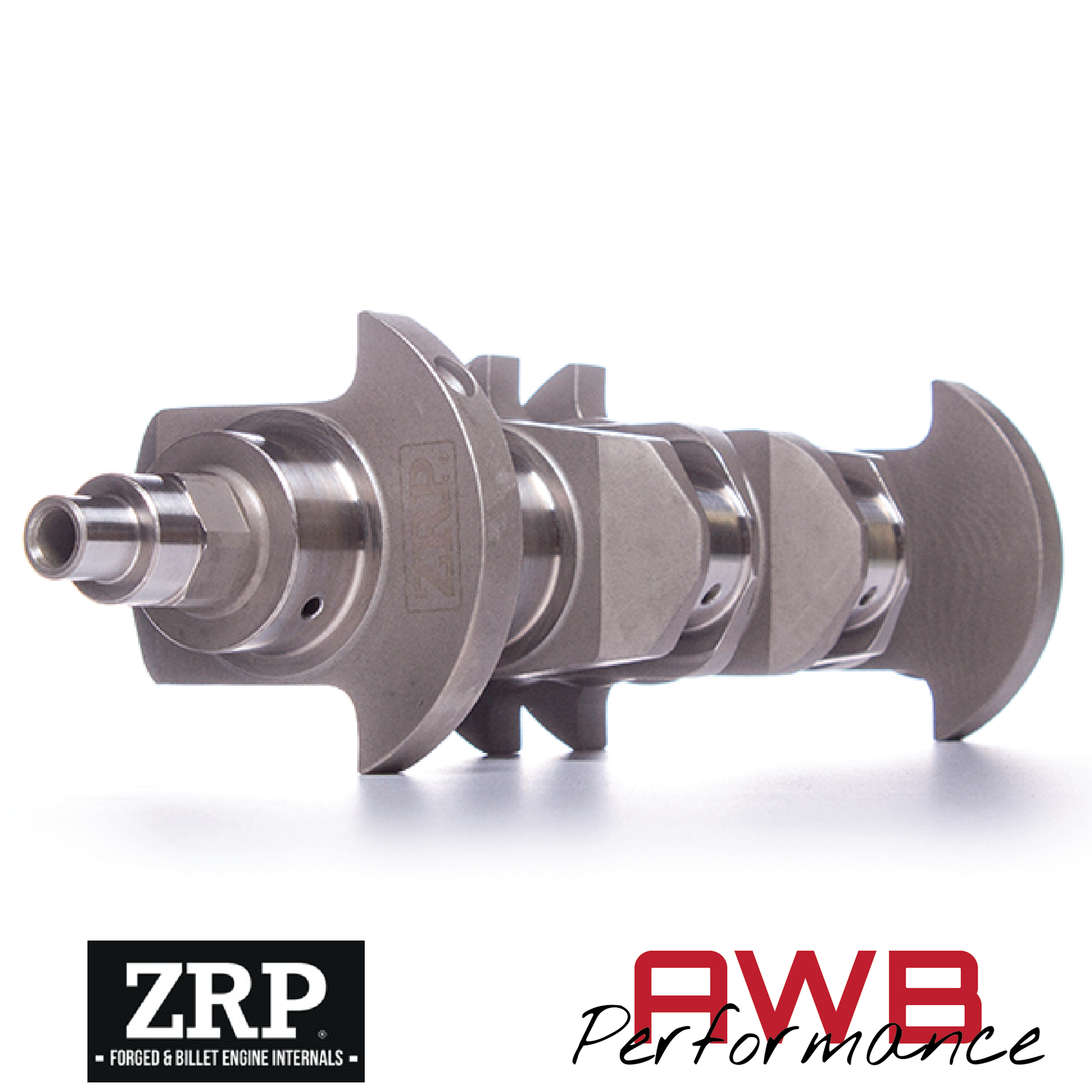

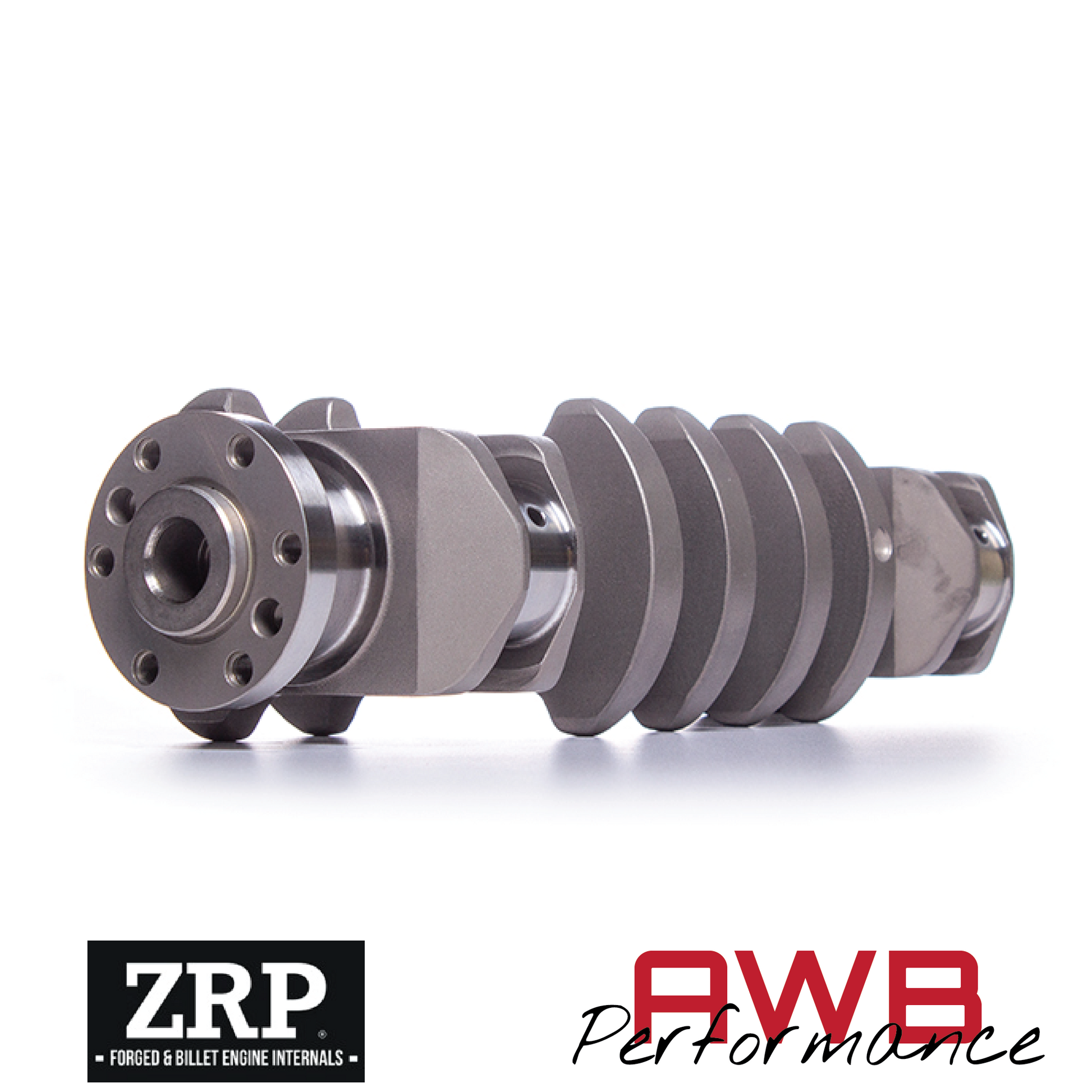

The ZRP crankshaft for Vauxhall Z16LET is manufactured from aerospace grade 4340 solid billet steel and no compromises have been made to the quality of the material, in order to ensure the best possible product. This crankshaft designed carefully from our vast experience, to provide the best possible engine performance and the production process consist of very strict inspections to ensure that they have the best quality and tight tolerances for perfect fitment.

The Vauxhall crankshaft is fully balanced to 1gr.cm /- 0.1 using state of the art Sunnen machines, balance results report included. Check the individual features for your application below.

Product Features and Design

• Aero-Wing counterweights for reduced windage to increase horsepower.
• Straight oil holes for better oiling of the rod journals.
• Chamfered oil holes
• Journal radius disperse load stress.
• Tapered rod journals for weight reduction.

Technical Features of ZRP Crankshafts

• Full CNC machining.
• ION (Plasma) Nitride process for hardening.
• Multi Stage Heat Treatment.
• Shot peening for stress release.
• 100% Magna- fluxing for flawless surface finish.
• Heat treatment for superior wear resistance.
• Micro-polishing for longer bearing life.
• Sonic tested and X-rayed to ensure a reliable end product.

2x Options Available:

Standard Stroke:

• Weight - 11.7Kg
• Stroke - 81.50mm
• Main Journal - 55.00mm
• Rod Journal - 43.00mm
• Crank Grade - 4340 Billet

Stroker:

• Weight - 14.3Kg
• Stroke - 89.00mm
• Main Journal - 55.00mm
• Rod Journal - 43.00mm
• Crank Grade - 4340 Billet

If ZRP products are in stock, they will be dispatched on the same working day. If ZRP products are not in stock, they could take up to 4 weeks to dispatch. Please contact us for an accurate ETA.
