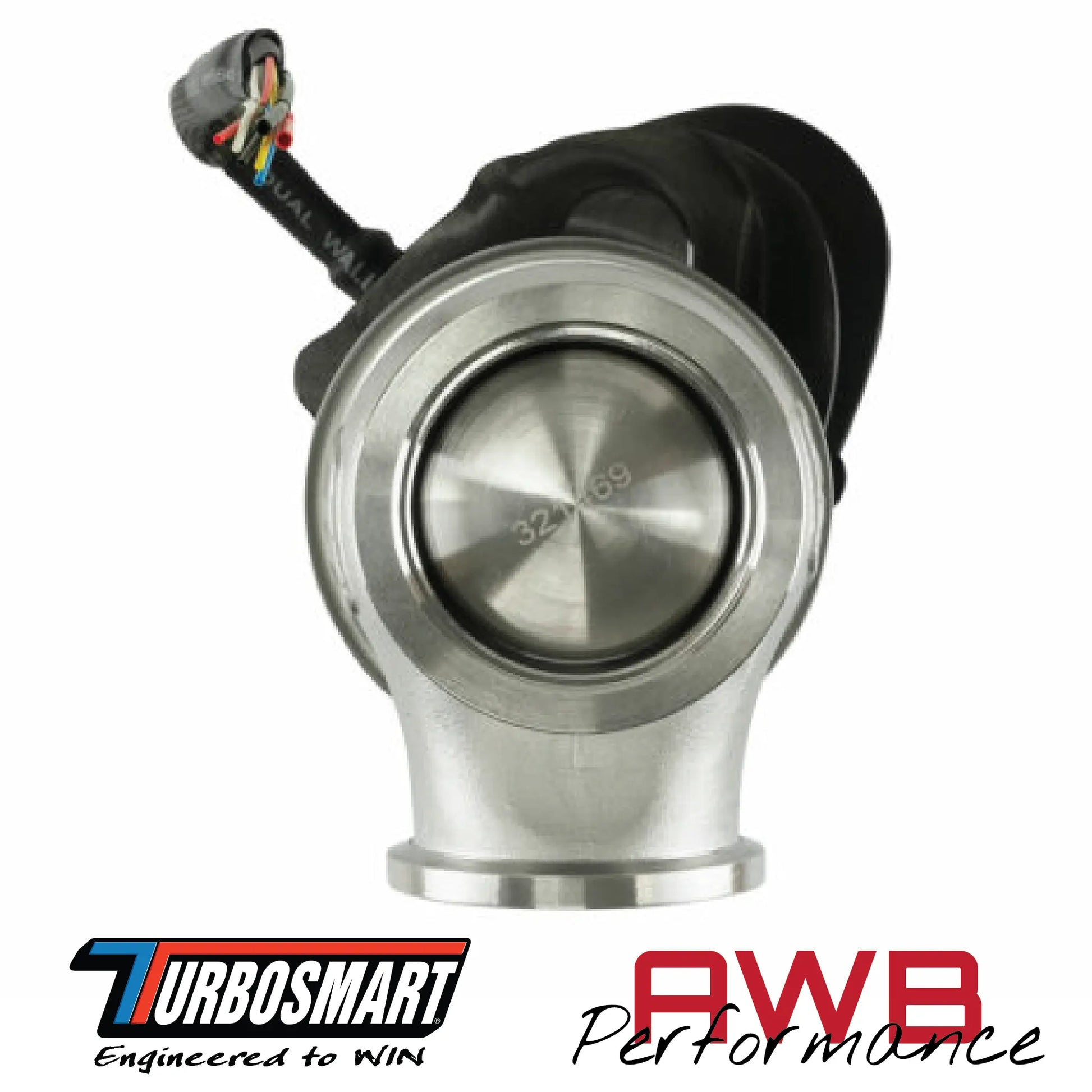

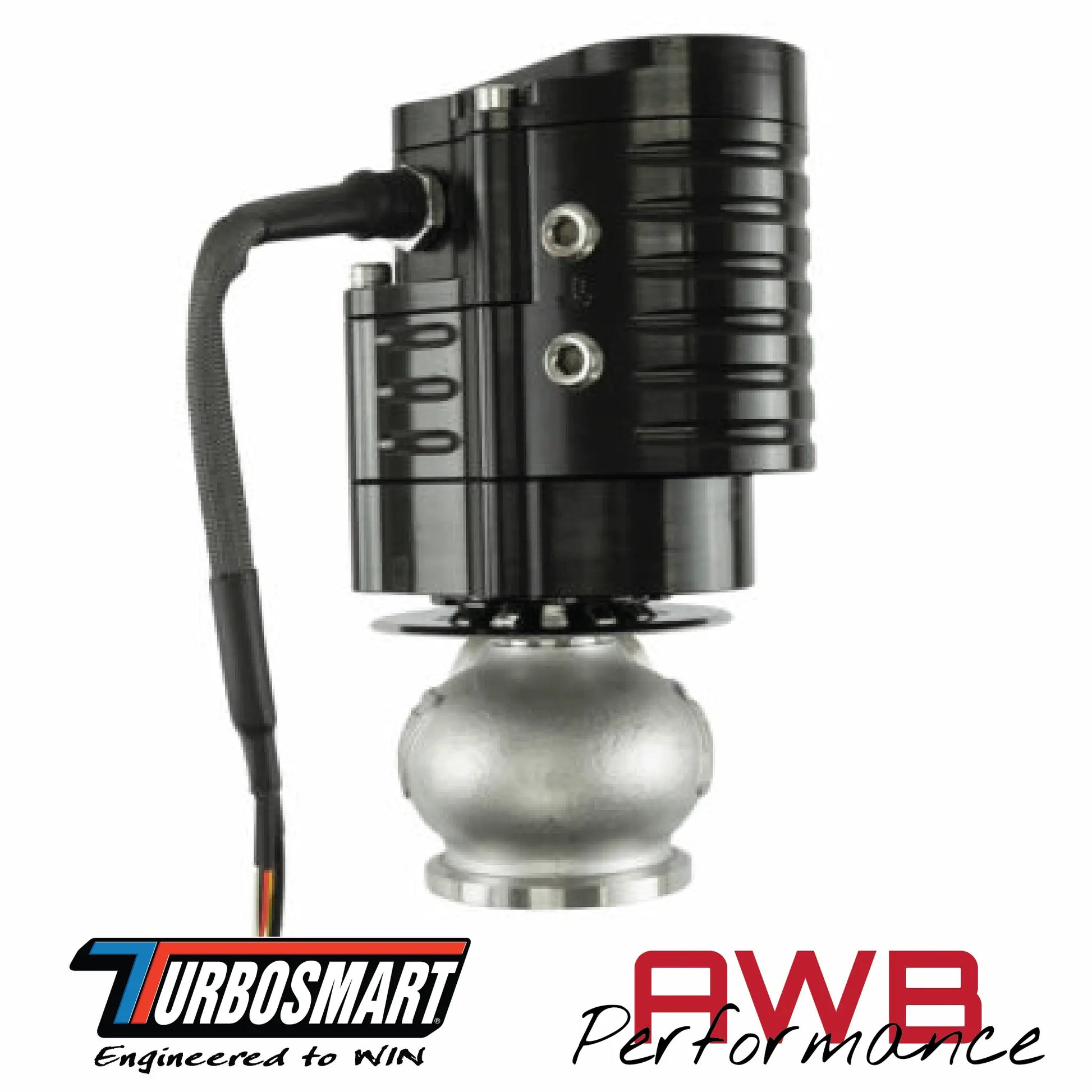

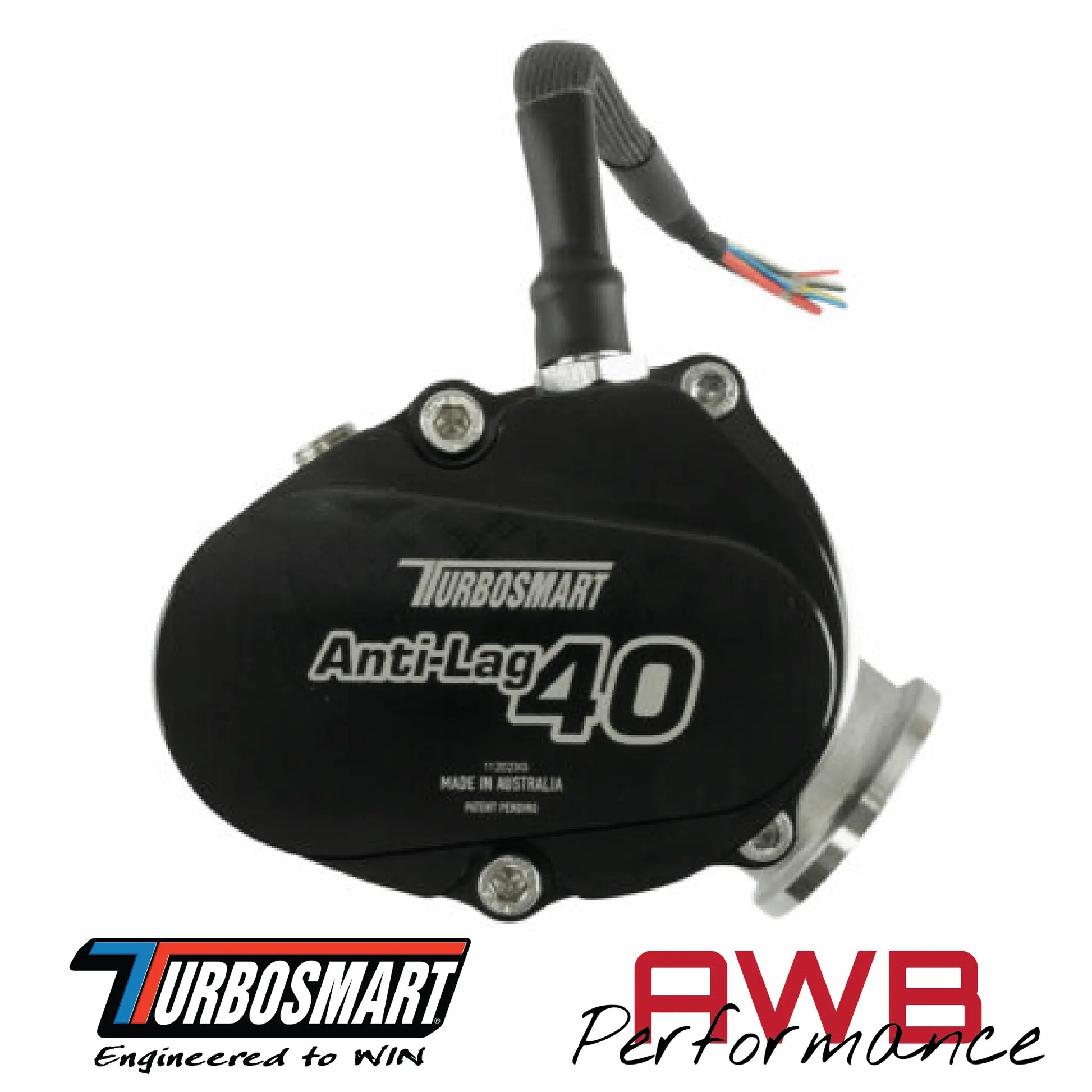

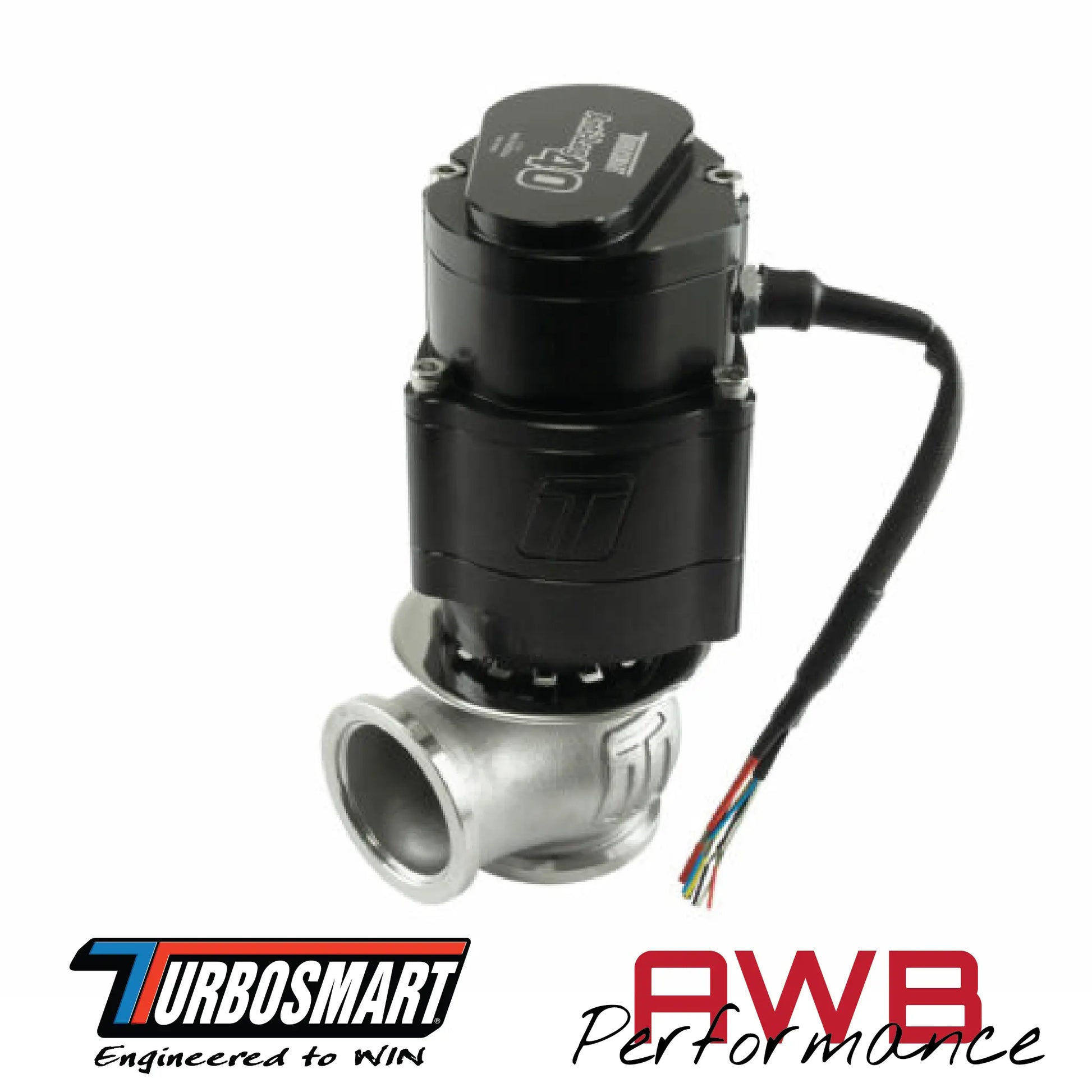

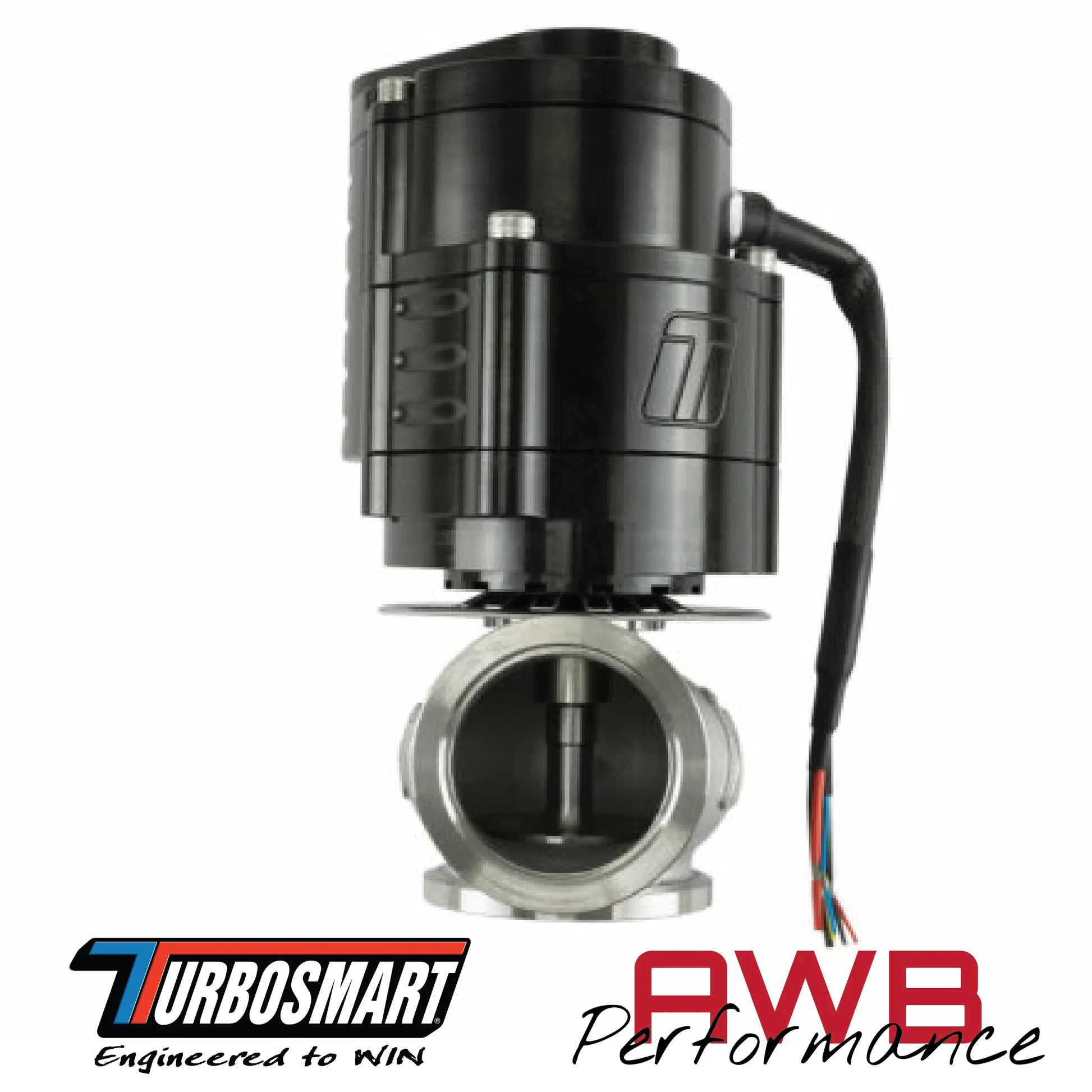

Turbosmart GenV eALV40 Electronic Anti-Lag Valve

Turbosmart GenV eALV40 Electronic Anti-Lag Valve

The Turbosmart GenV eALV40 (Fresh Air bypass / Anti-Lag Valve) for motorsport and high-performance Applications features fully electronic actuation, removing the need for the solenoids and tanks of traditional pneumatic systems and featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also available for easy fitment and fabrication for all standard applications.

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle-based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

Don’t have an ECU that has a spare dual half-bridge output? No problem at all. Check out the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independent channels via simple PWM inputs or more advanced CAN-based inputs – All onboard and in one unit!

Features:

• Nitronic 60 Valve Guide and High Temp 347 SS Body
• Liquid Cooled, Electronic Actuator
• Strap Type V-ban clamps
• User Adjustable Actuator Position
• Onboard Analog 0-5V Valve Position Sensor
• Onboard Analog 0-5V Actuator Temperature Sensor

• Onboard Digital (PWM) Valve Position Sensor

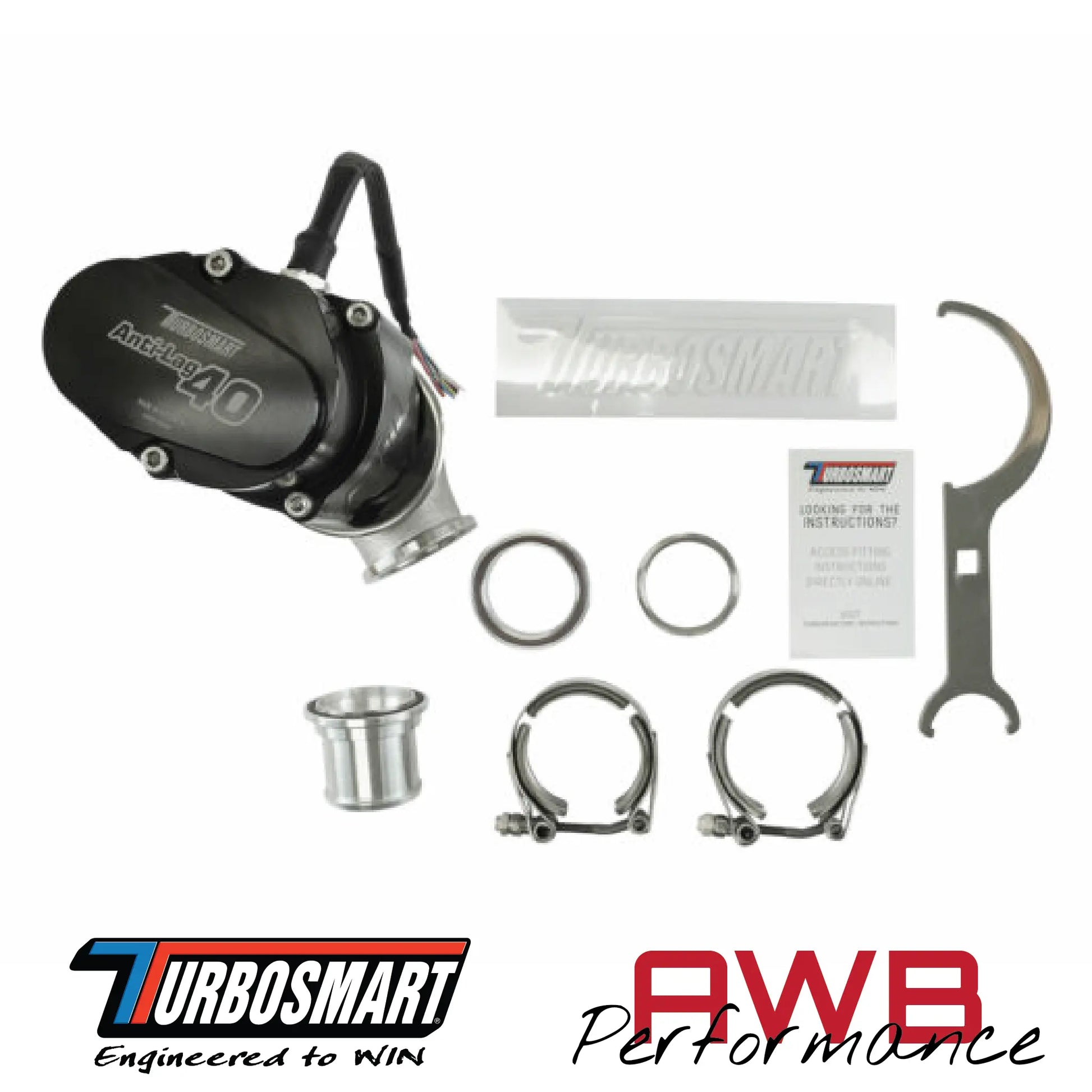

Includes:

• GenV eALV40 Electronic Anti-Lag Valve

• Un-Terminated Flying Lead

• Valve Seat

• Inlet and Outlet V-band Clamp

• Inlet Hose Adapter 1-1/2″ (38.1mm)OD

• C Spanner / Collar Tool

• Inlet O-ring

• Turbosmart Decal
