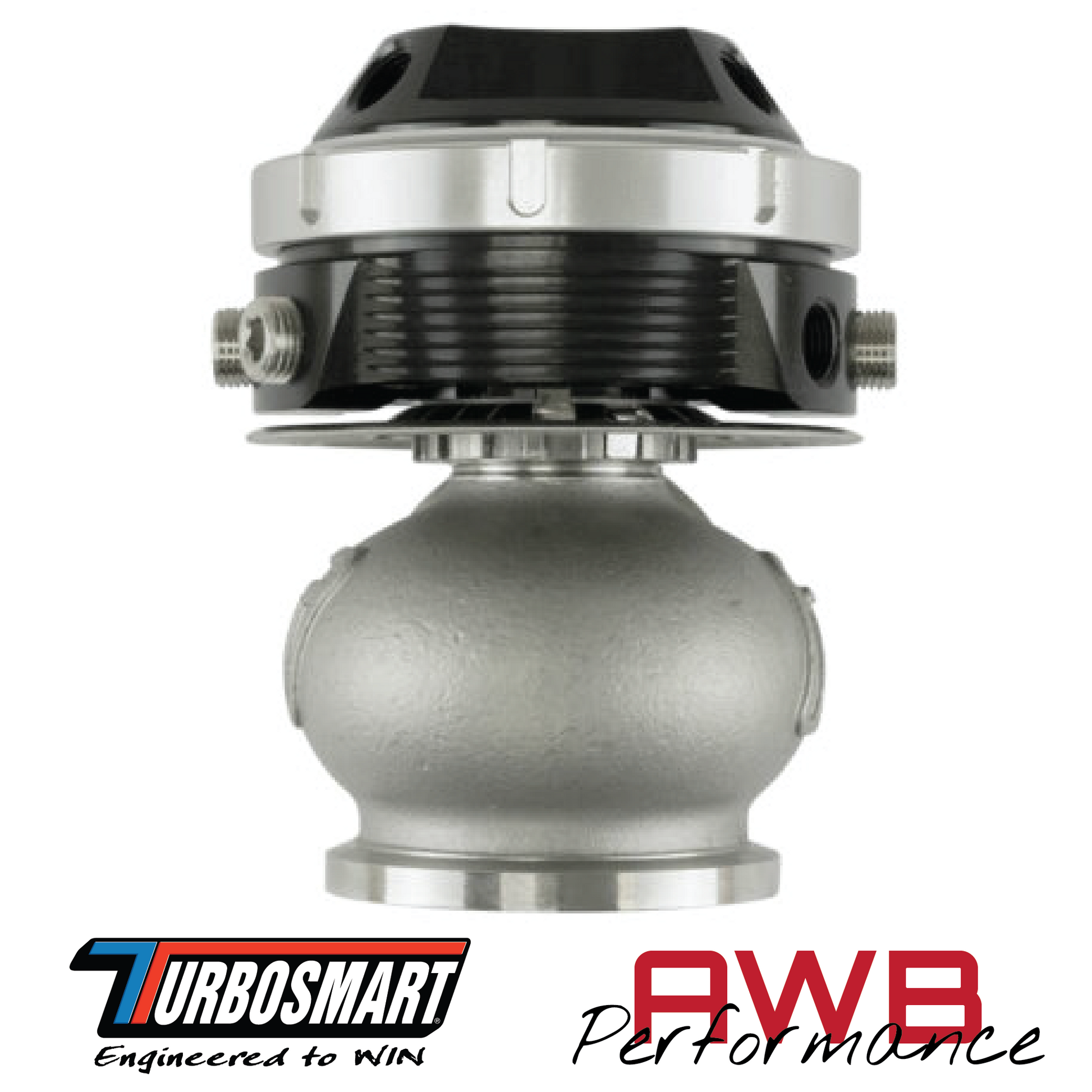

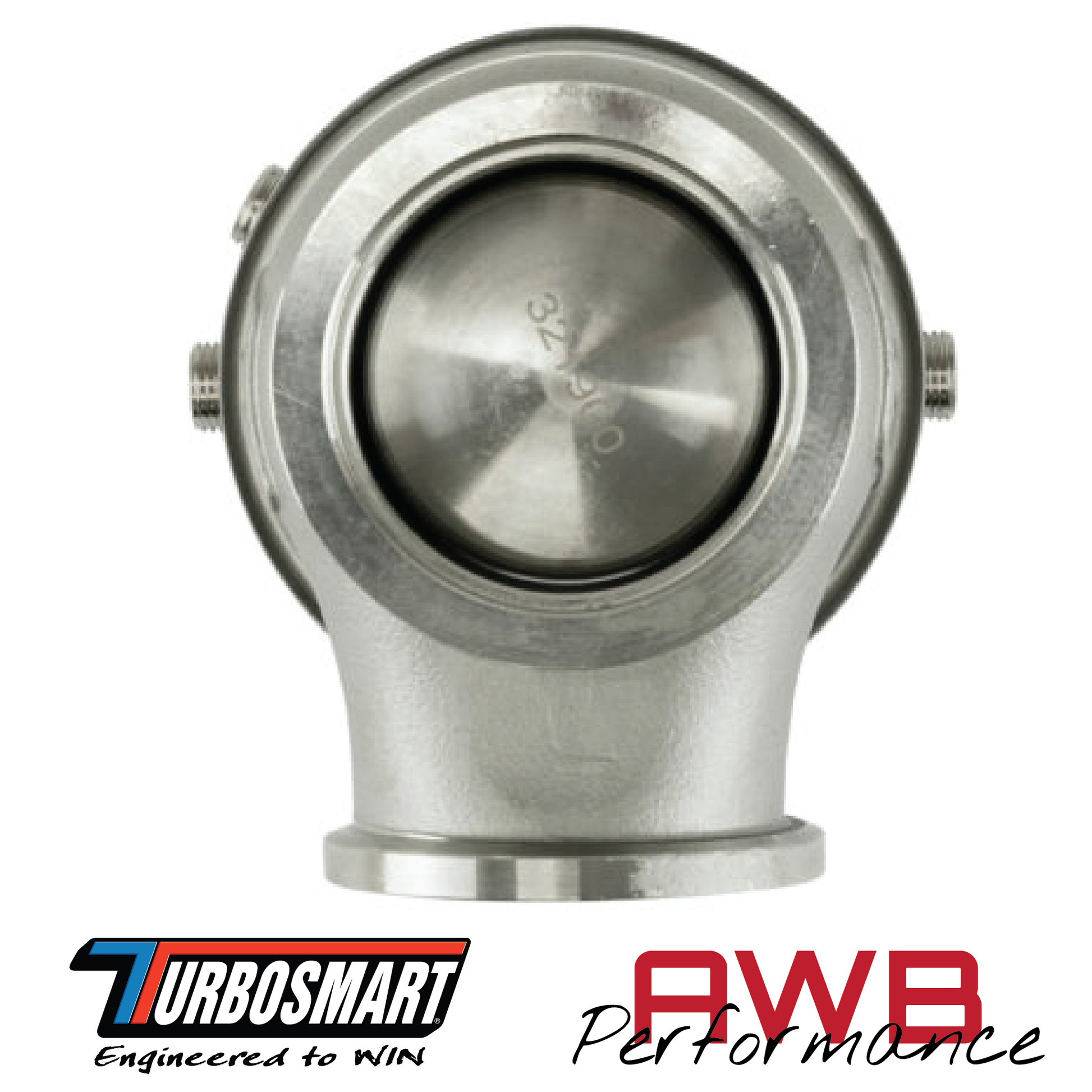

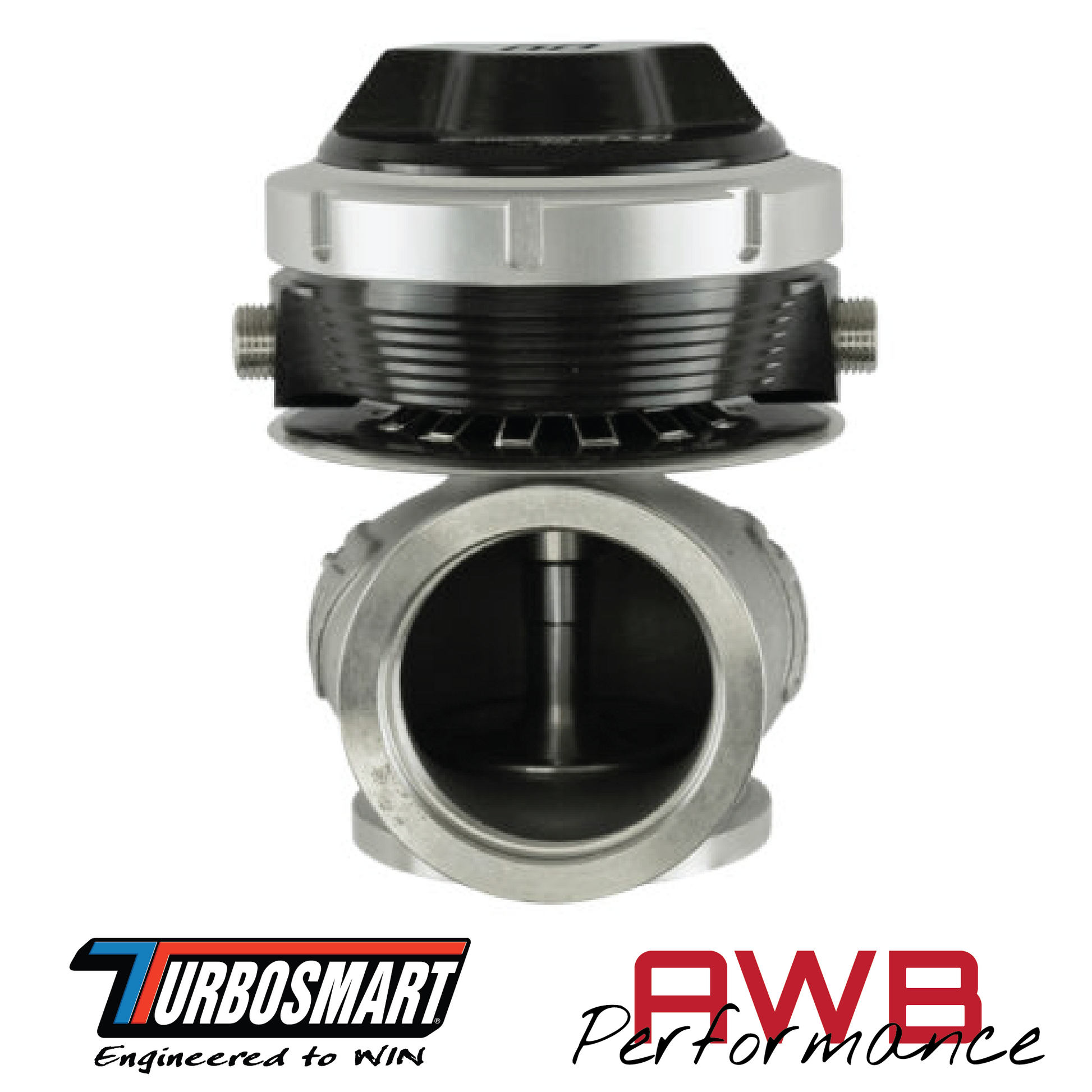

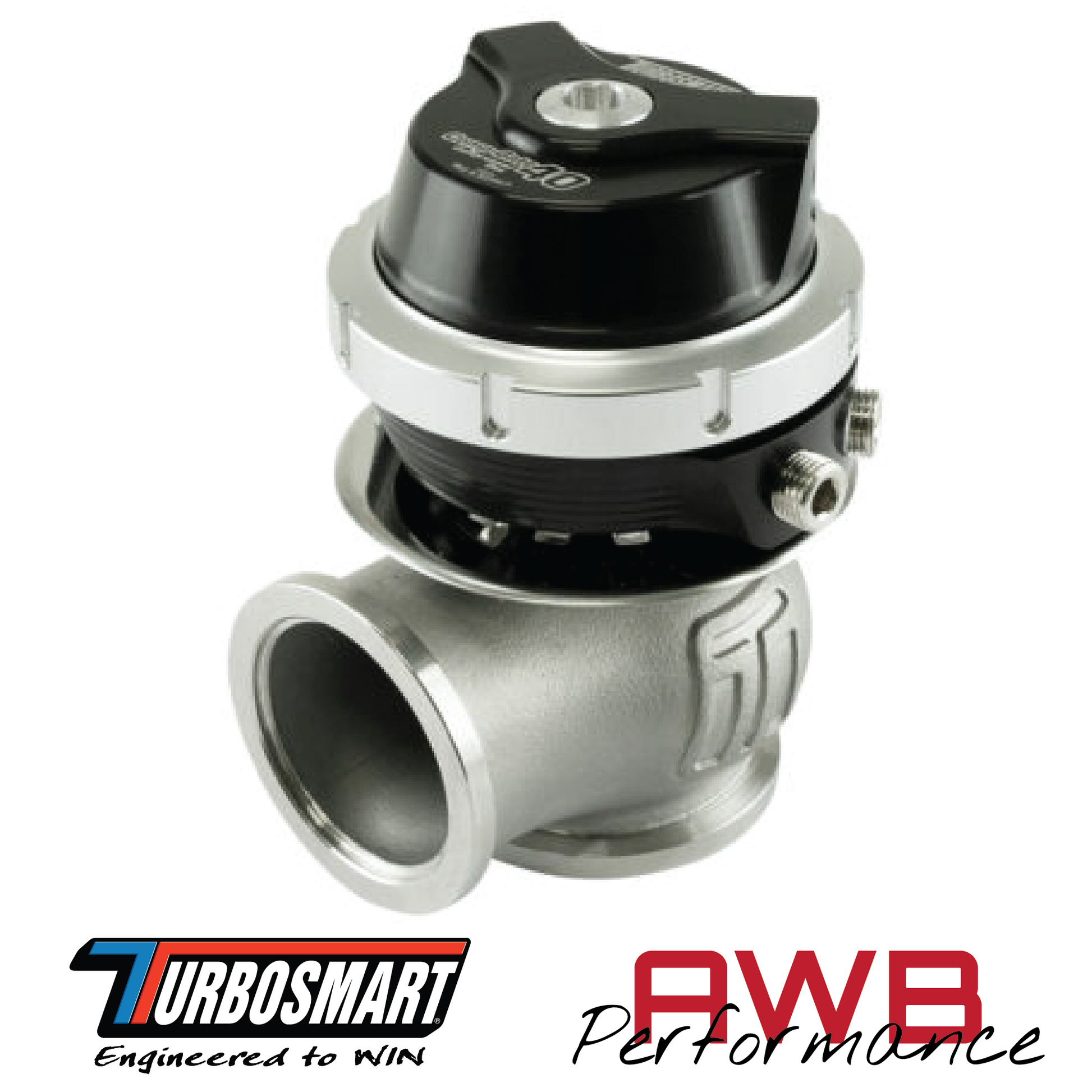

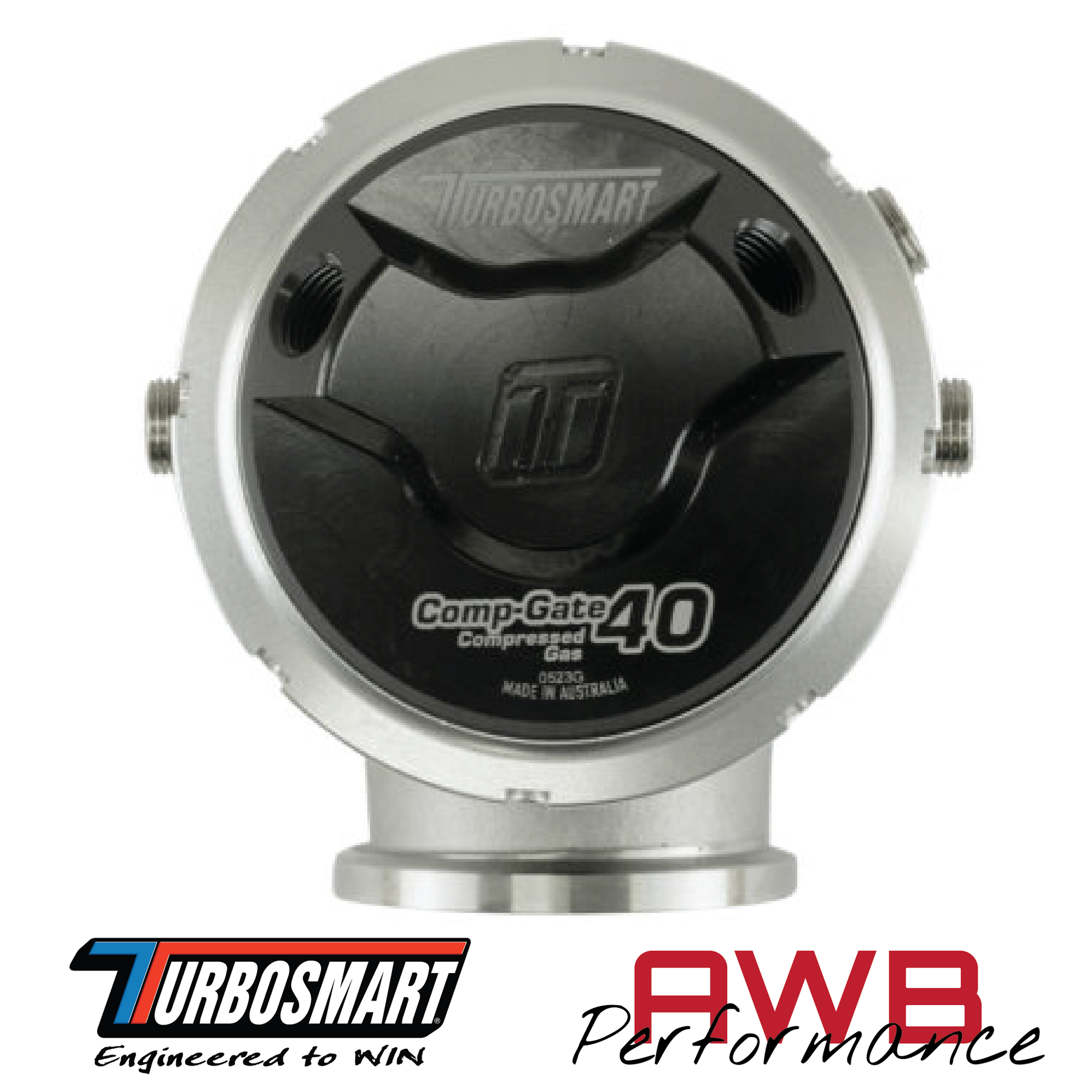

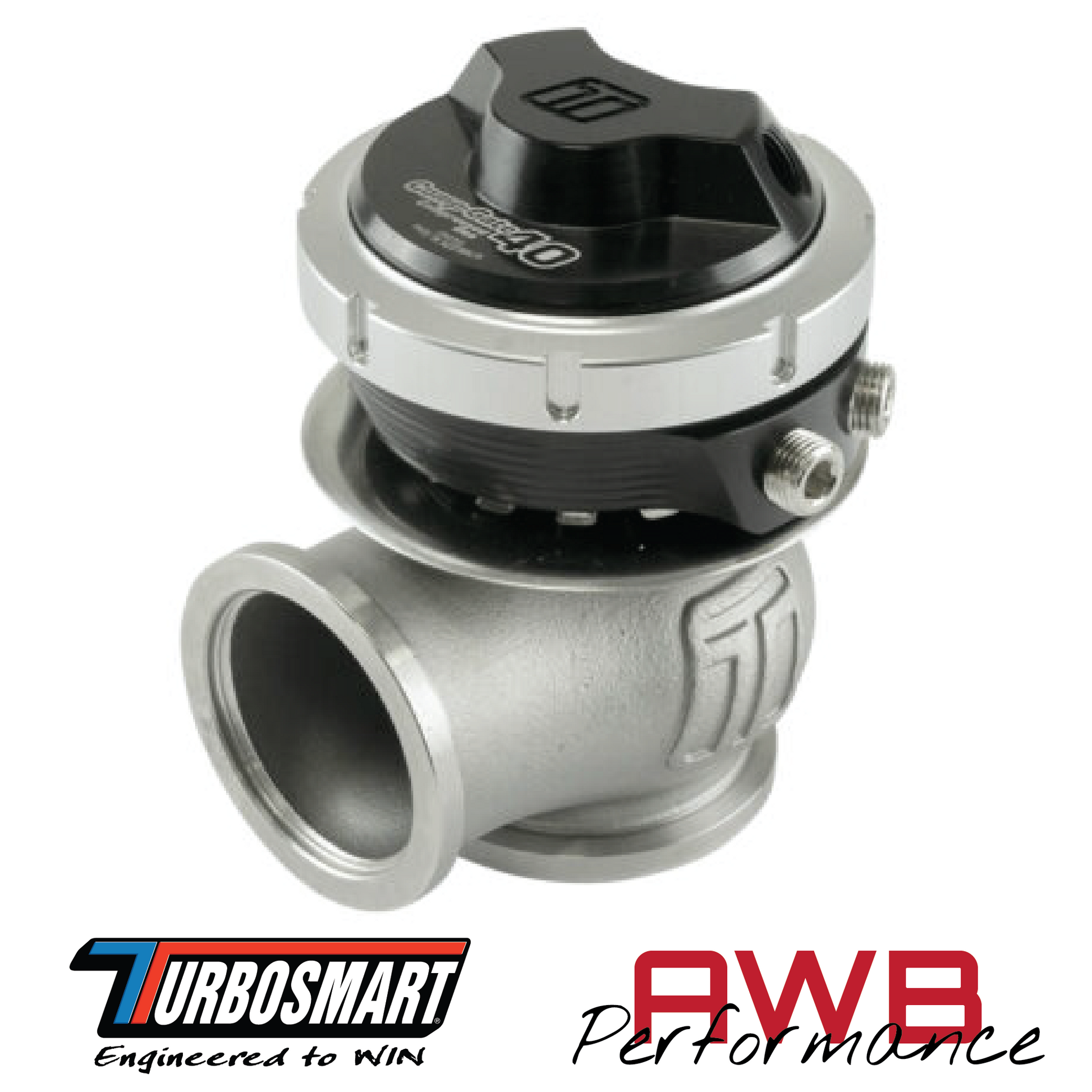

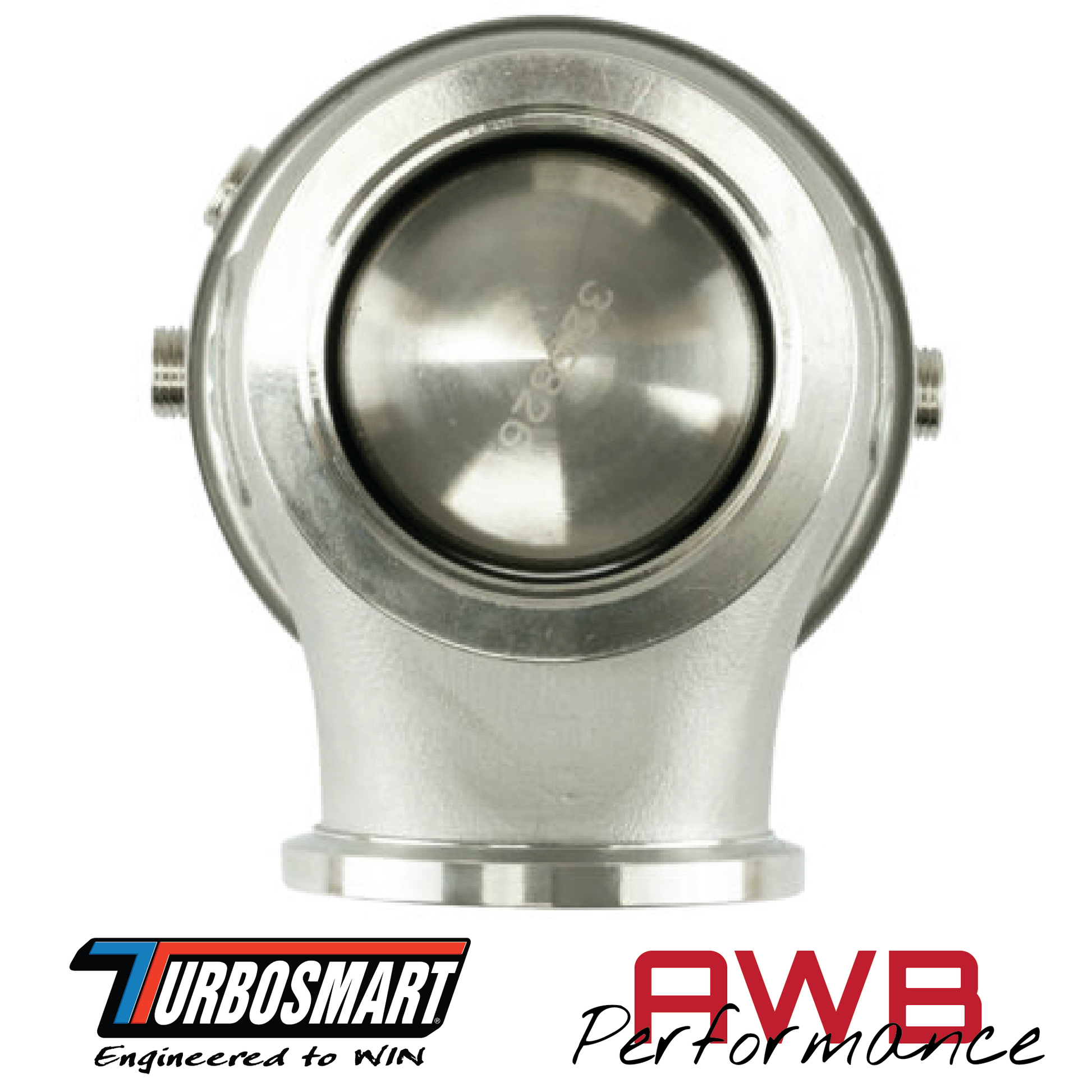

Turbosmart GenV CompGate40CG ‘Compressed Gas’

Turbosmart GenV CompGate40CG ‘Compressed Gas’

GenV CompGate40 CG for Compressed Gas and C02 External Wastegate is designed for control strategies that require a large tuning window and large pressure differentials from the top to lower actuator housings, whereas traditional actuators on poppet style gas can achieve around 2-3x base spring pressure, the CG / C02 Version is capable of extreme multiples of the base pressure through the use of additional reference signal, high-pressure gas and C02.

The GenV CG and C02 variants are equipped with an inverted diaphragm, which is capable of high-pressure and high-pressure differentials (top to bottom), facilitating large tuning windows and the large boost-bandwidth associated with Drag Racing, Rally and Rally RX systems.

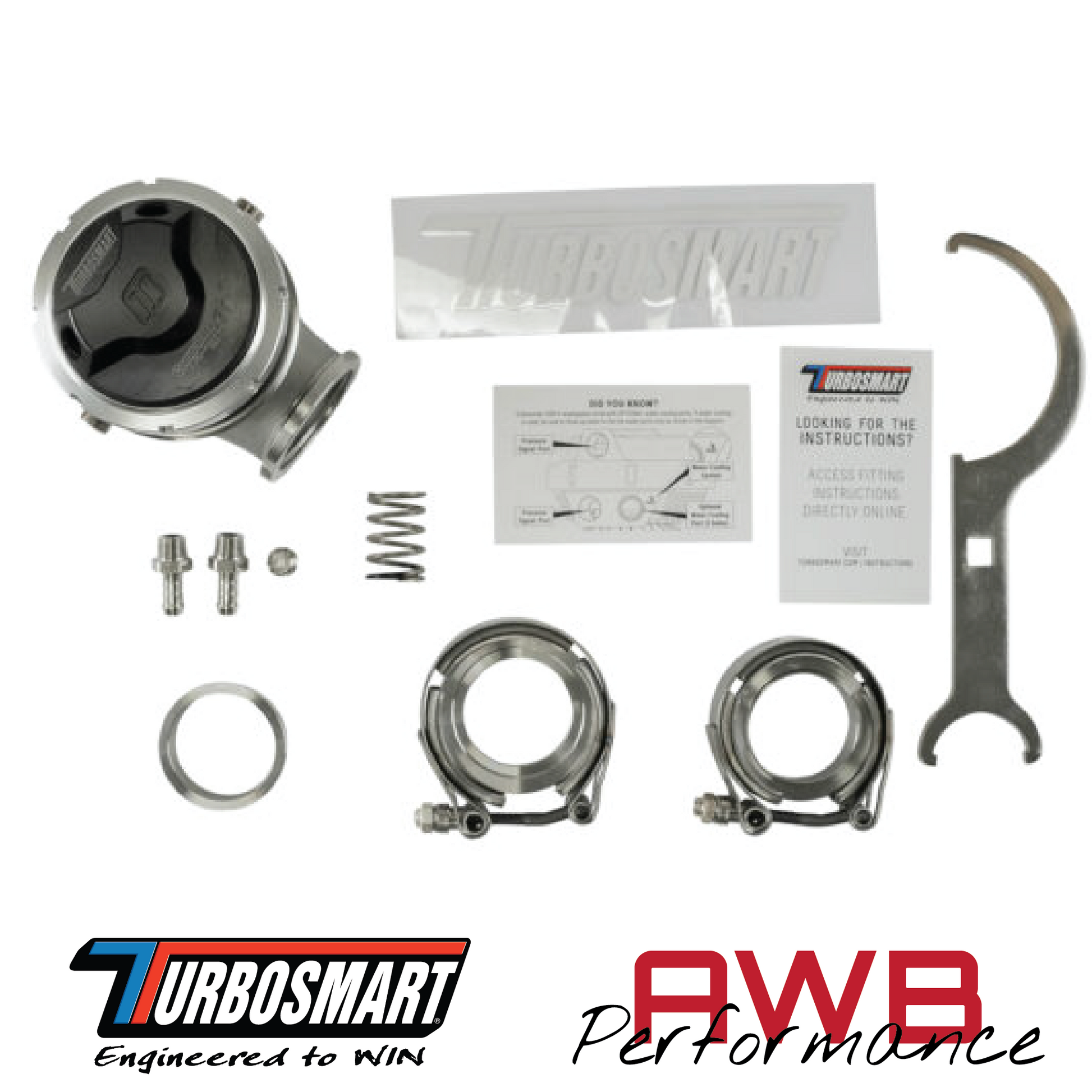

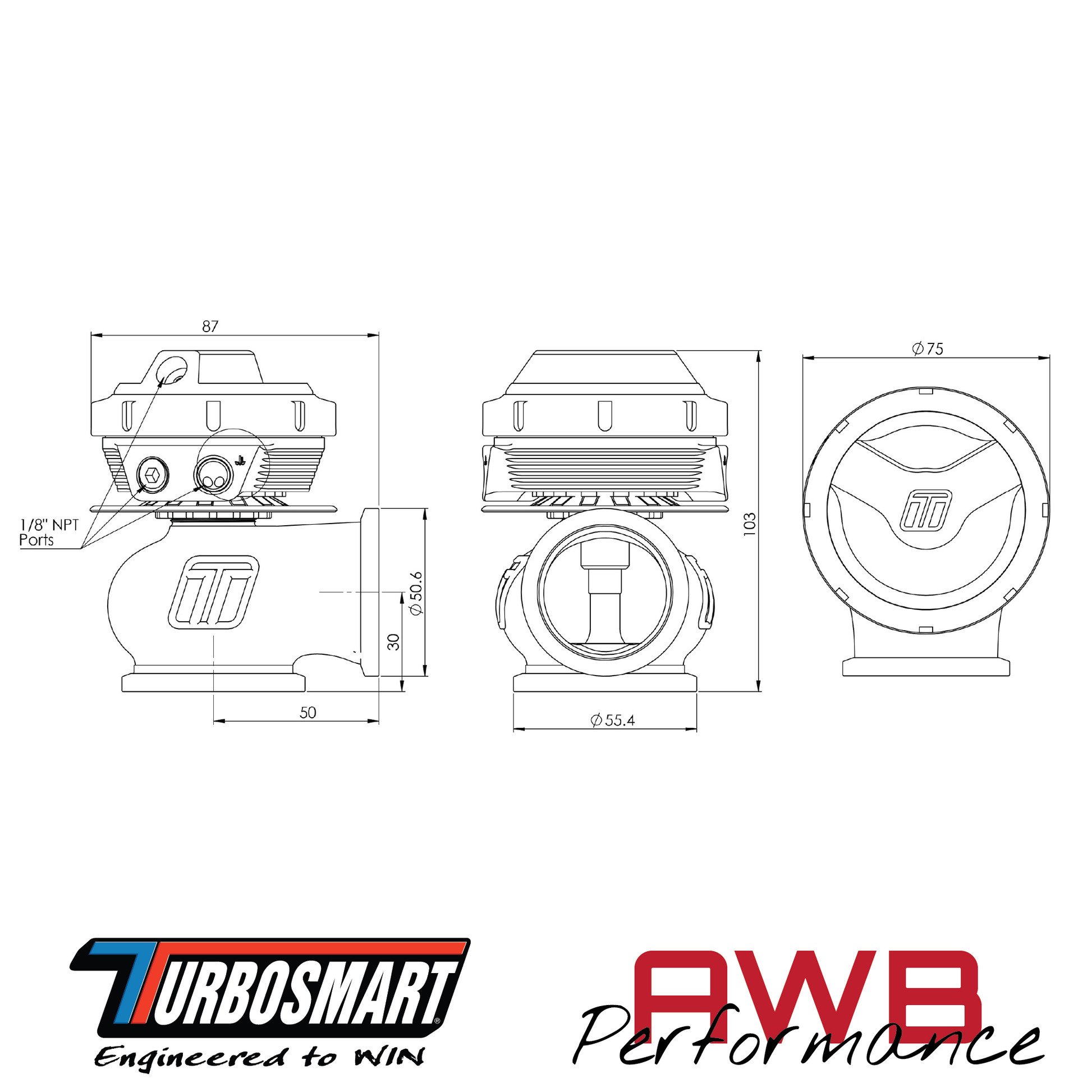

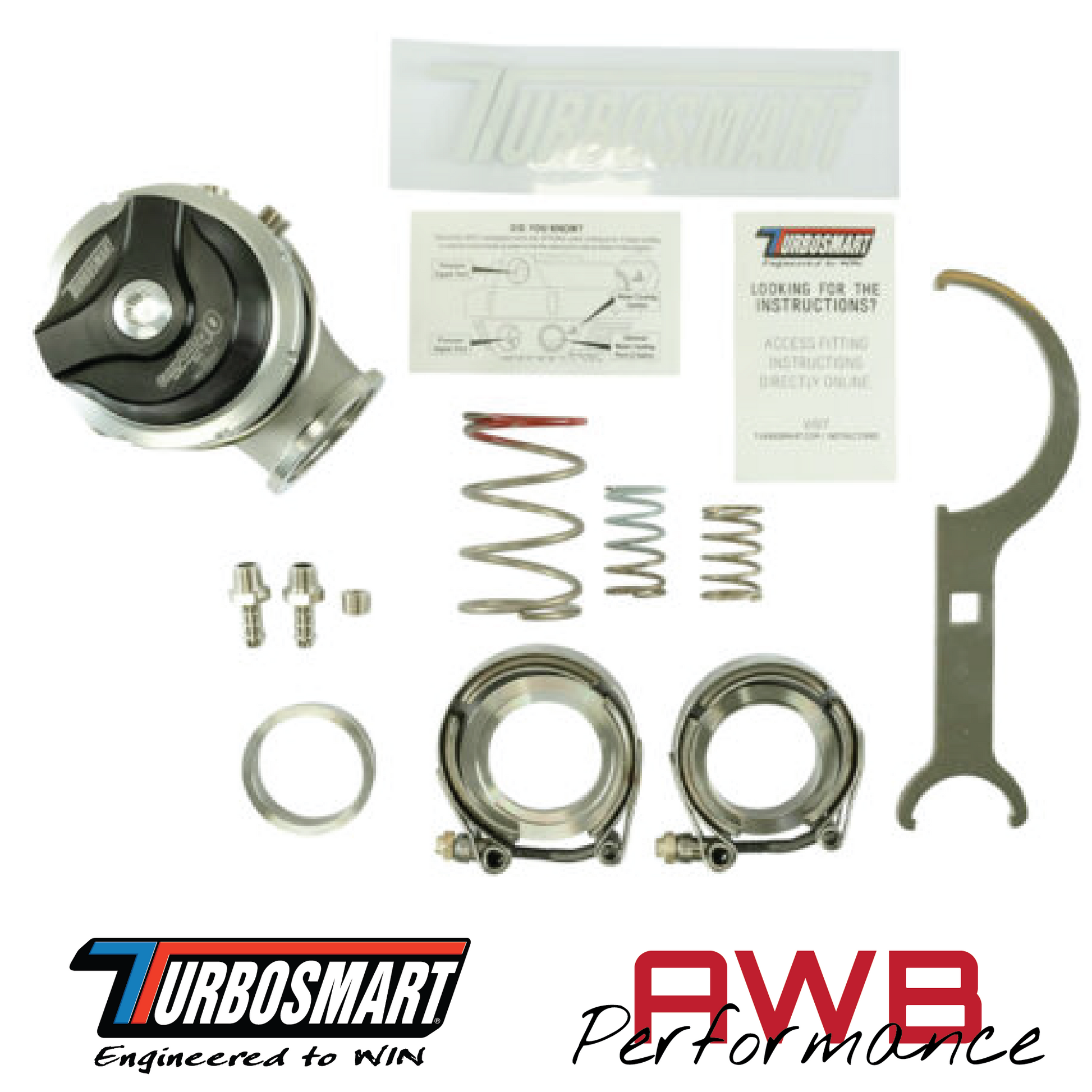

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity. The GenV External Wastegate Range is CFD optimized and real-world validated in-house for maximum flow and thermal management. The GenV range has more features, options and performance than any other gate. and includes a variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available in

• Standard Version (Up to 5psi Base Pressure)
• HP High-Pressure Version (up to 26psi Base Pressure)

Features:

• Class Leading, Thermal Performance
• Class Leading, CFD and Bench-Validated Flow Performance
• Class Leading Fatigue Resistance
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps
• User Adjustable Actuator Position
• Modular Design for Actuator Interchangeability
