Haltech UC-10 10in Digital Dash Gauge - HT-068000

Haltech UC-10 10in Digital Dash Gauge - HT-068000

Ā£1,595.00 GBP
Ā£1,595.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
0 In Stock
Haltech UC-10 10in Digital Dash Gauge - HT-068000

DASH OVERVIEW

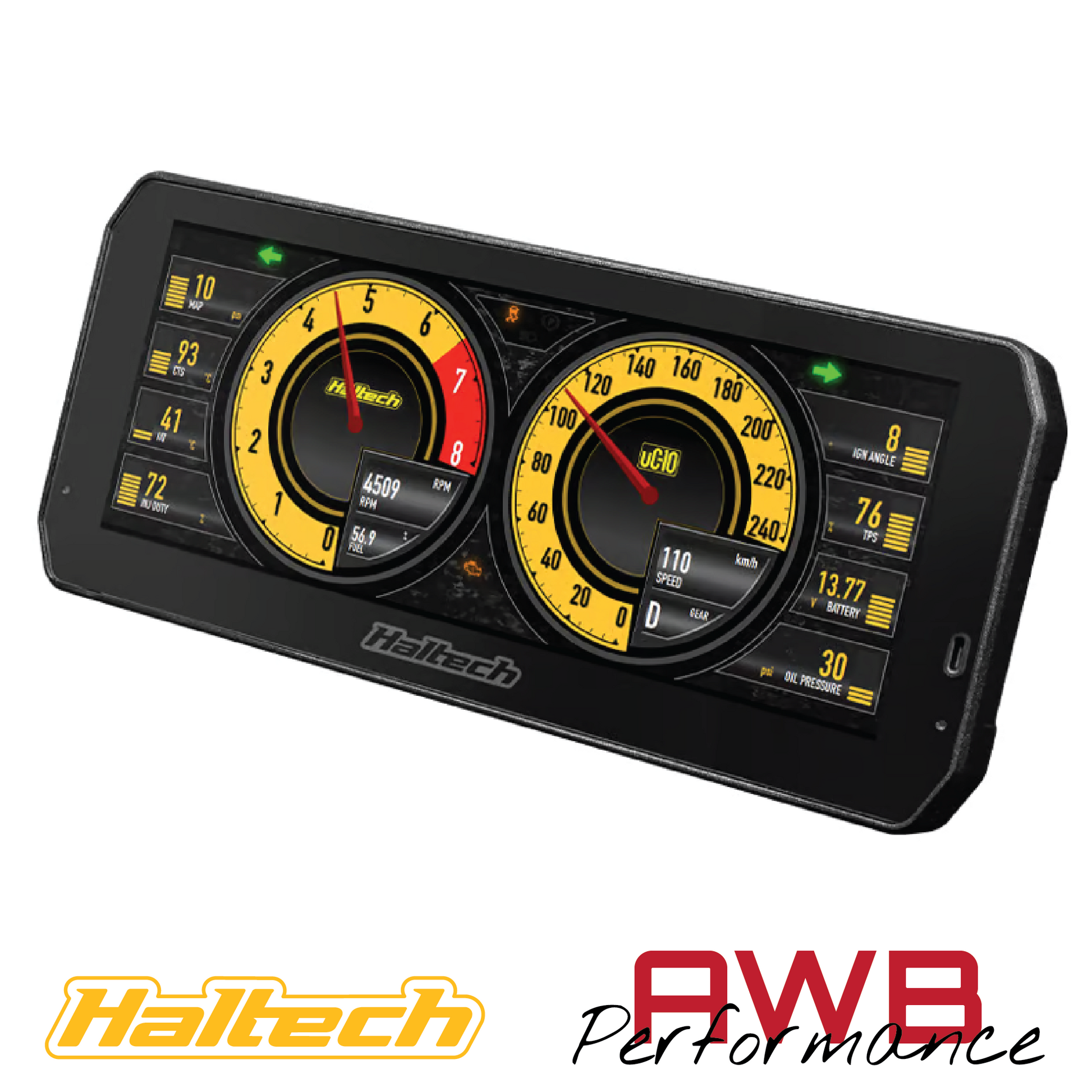

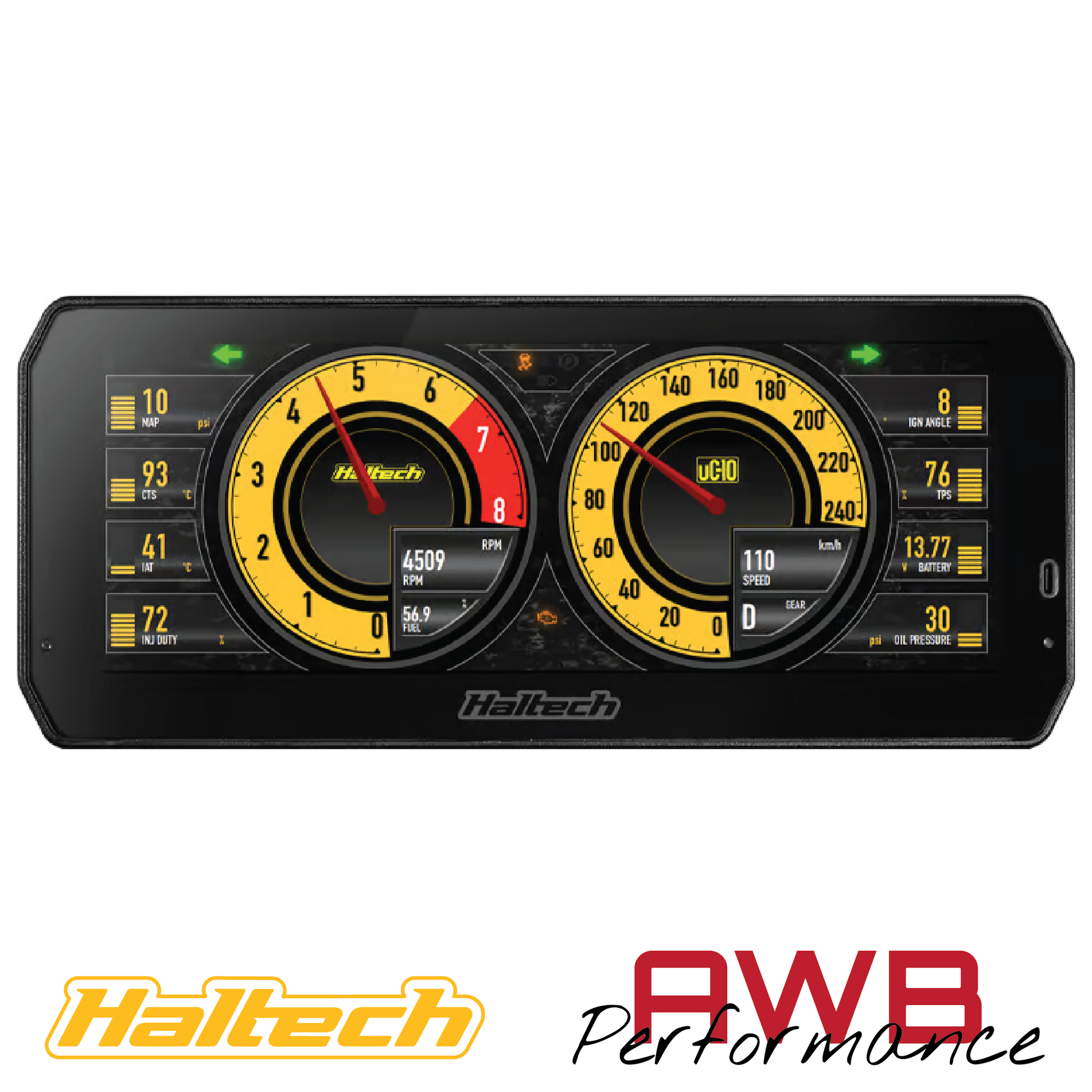

With a crisp, clear and full-color display, the all-new Haltech uC-10 Display Dash is now available.
The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups.
The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.

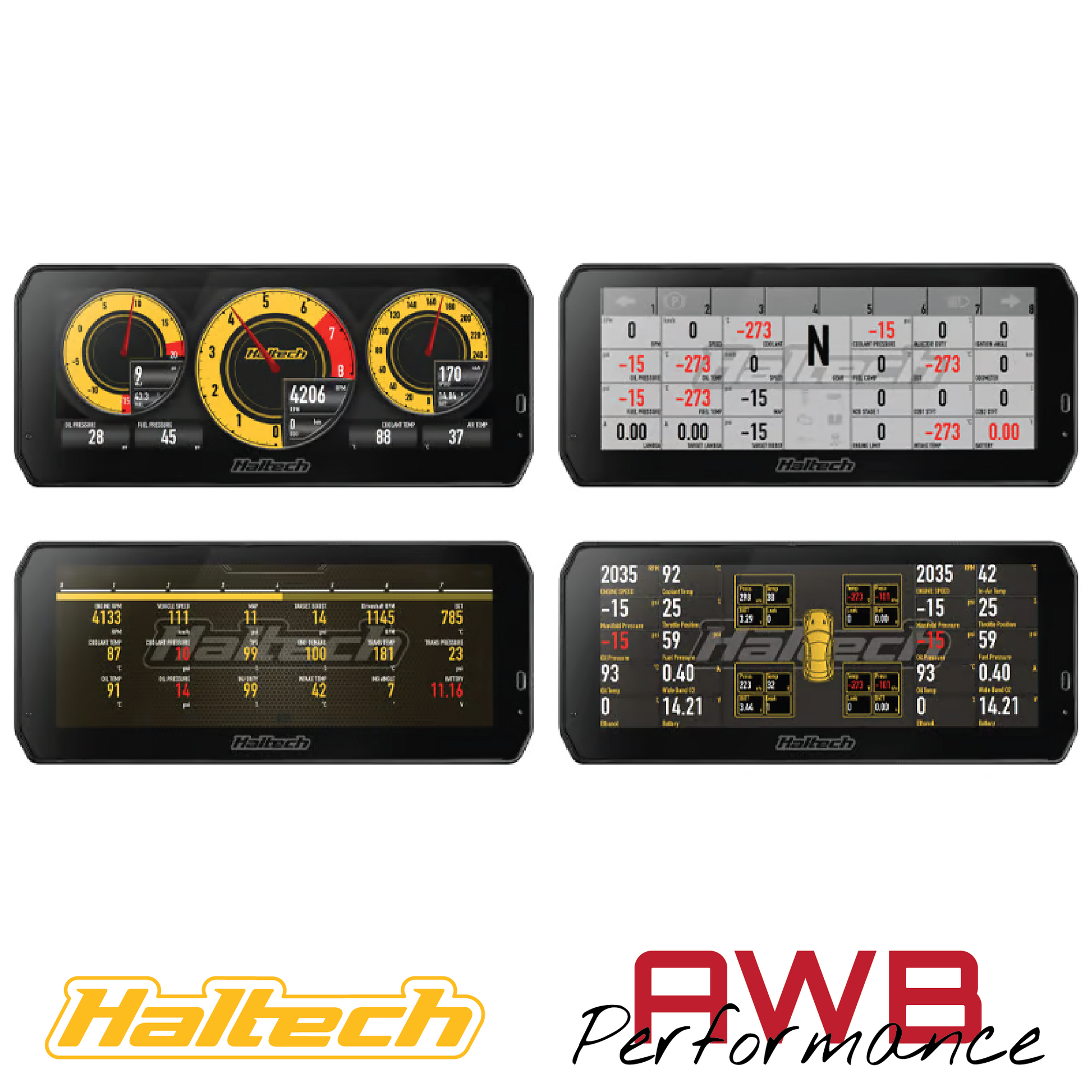

  • Full-colour, optically-bonded TFT screen
  • 70Ā° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution, 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors
Suits:Ā
All current Haltech ECUs via CAN
Ā
Plug'n'Play compatible with the following aftermarket ECU brands:Ā
  • Hondata
  • Link G4
  • MaxxECU
  • Microtech
  • MoTeC M1 series
  • MoTeC hundred series- (M400,600,800 gold box ECUs)
  • Syvecs.

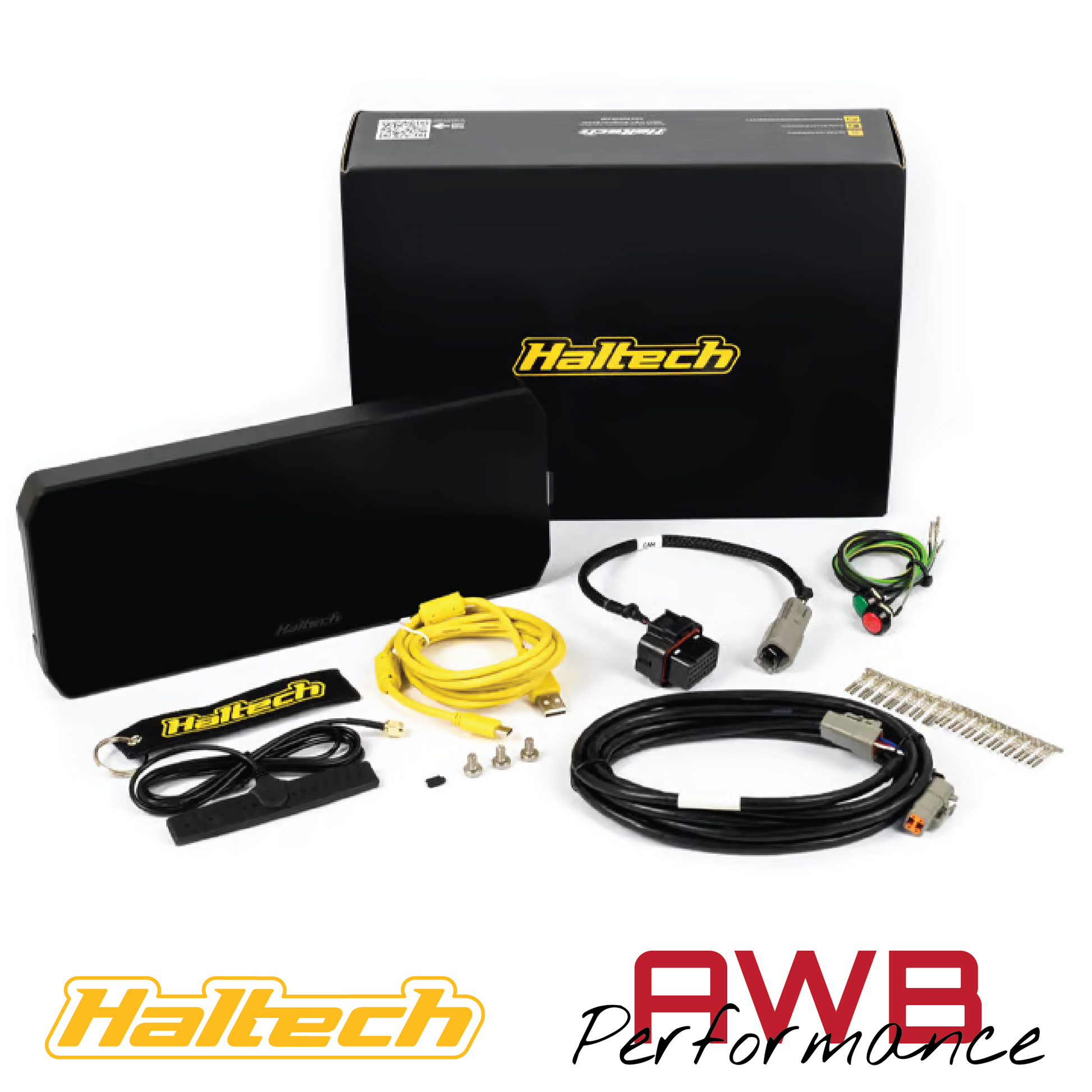

Includes:
  • 1 x Haltech uC-10 Digital Dash
  • 1 x 34P connector - same as HT-131001
  • 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in)
  • 1 x USB-C cable
  • 3 x M5 x 8mm mounting screws
  • 2 x Momentary switches, pre-terminated 800mm 22AWG Cable
  • 1 x Glass Mount Wi-Fi antenna (Wi-Fi functionality will be made available with future firmware update)
  • 1x Quick Start Guide
  • 1 x Haltech Fabric Keytag
  • 3x Haltech Stickers

If in stock, Haltech products will be dispatched on the same working day. If not in stock, Haltech products could take up to 4 weeks to dispatch. Please contact us for accurate ETAs.
