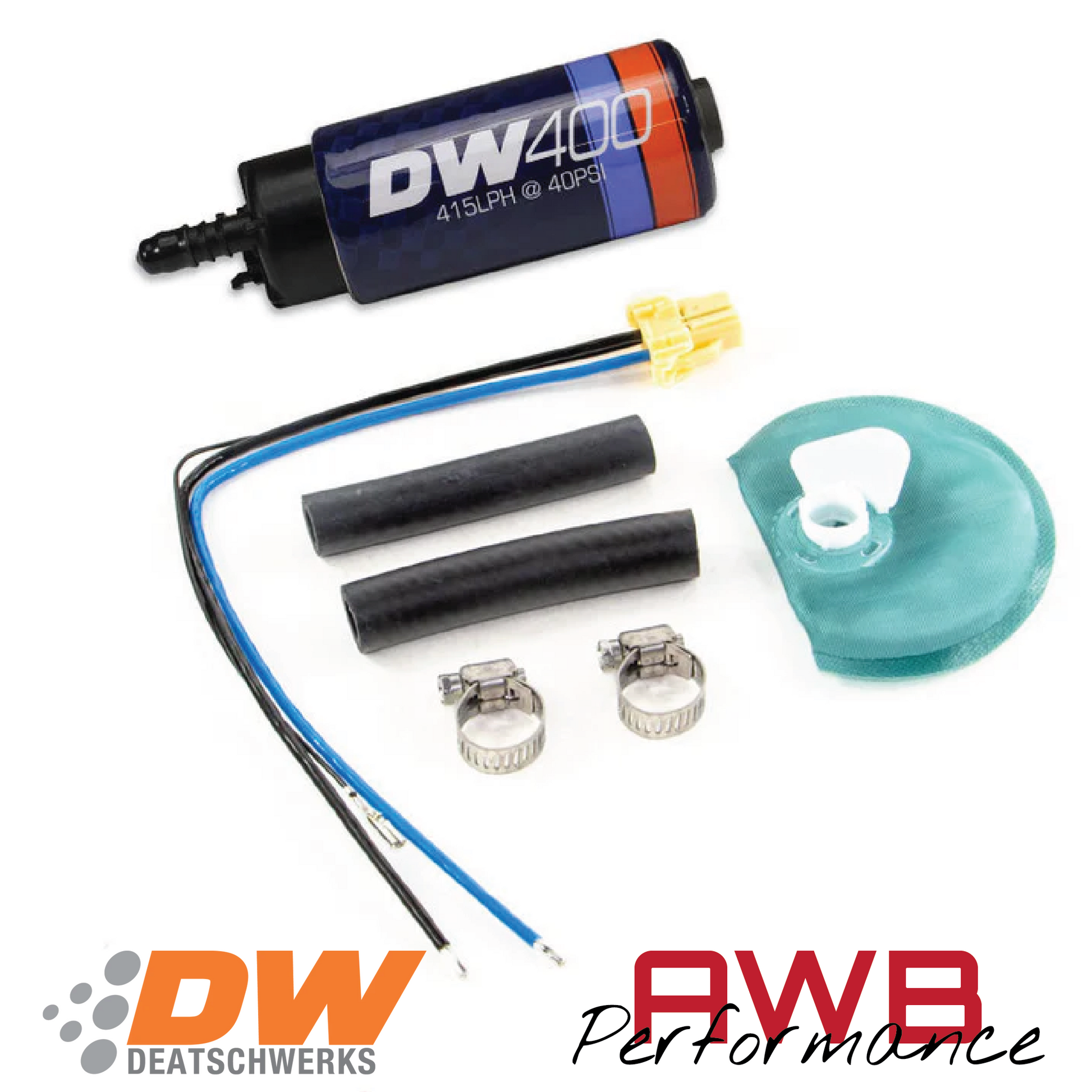

DeatschWerks DW400 415lph Universal Fuel Pump - 9-401-1001

The DW400 is the highest flowing in-tank fuel
pump on the market. Quiet operation and pulse
width modulation compatibility are delivered via the
turbine impeller and computer balanced armature.
E85 compatibility is built in via the carbon
commutators and a fully encapsulated armature. All
DW fuel pumps are backed by a 3-yr no fault
warranty.

Specifications:

• Weight - 550g
• External Materials - Electroplated Steel
• Inlet Fitting - 14mm ID, 18.1mm OD
• Outlet Fitting - 3/8" Hose Clamp
• PRV Activation - 120psi
• Impeller Design - Single Scroll Composite Turbine
• Connector Terminal - Spade Pos/Neg
• Min Voltage Input - 6 Volts
• Max Input Voltage - 18 Volts
• Current Draw @ 40psi - 16.1 amps (13.5v)

• Includes Integrated Check Valve
• 500+ LPH Open Flow, 415LPH At 40 PSI
• Outflows Walbro 450 "e85" by 31% (70-100 psi)
• Rated To 120psi Total Fuel Pressure
• Carbon Commutator For e85 Compatibility

If DeatschWerks products are in stock, they will be dispatched on the same working day. If DeatschWerks products are not in stock, they could take up to 4 weeks to dispatch. Please contact us for a more accurate ETA.
