AEM 12 Position Trim Pot - 30-2056

AEM 12 Position Trim Pot - 30-2056

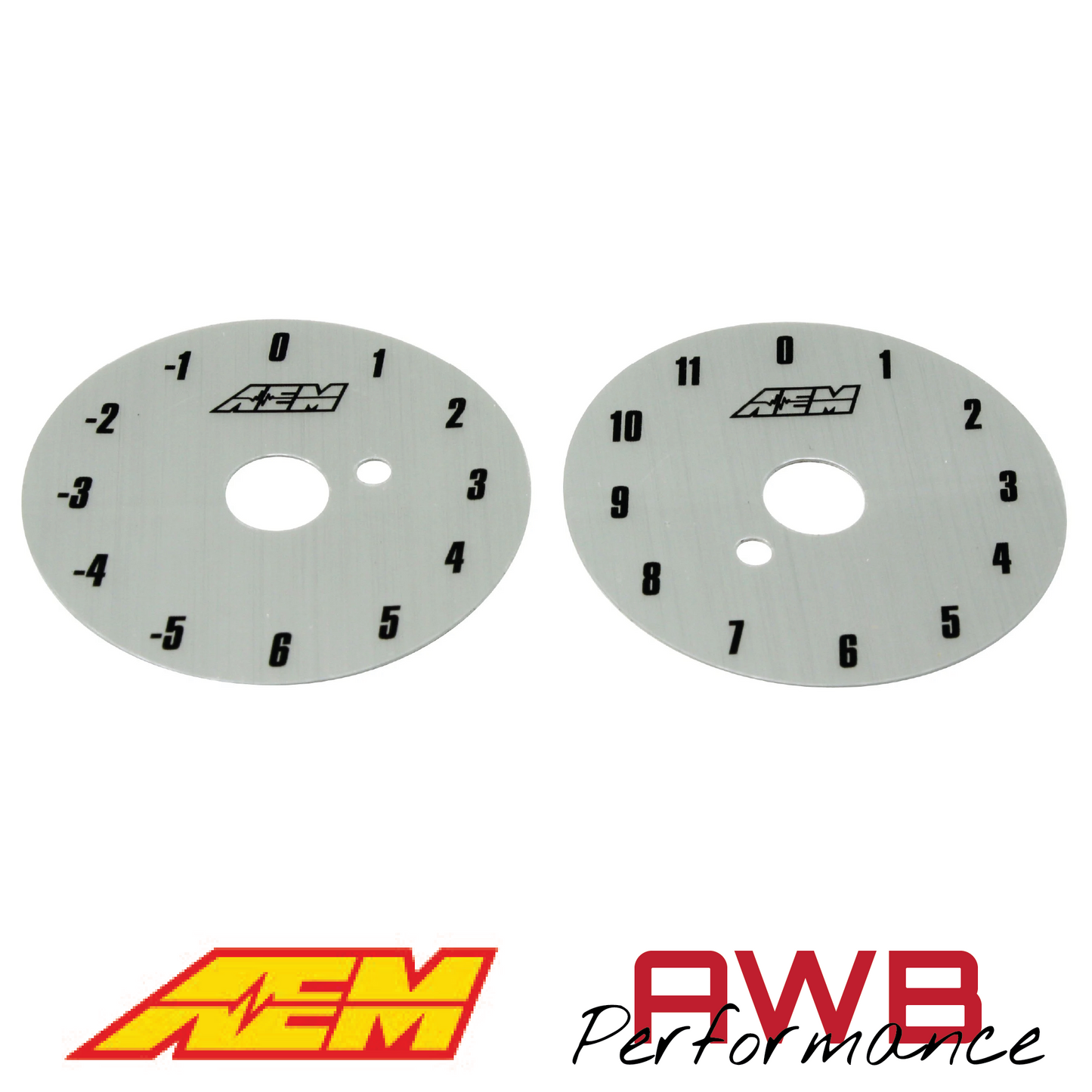

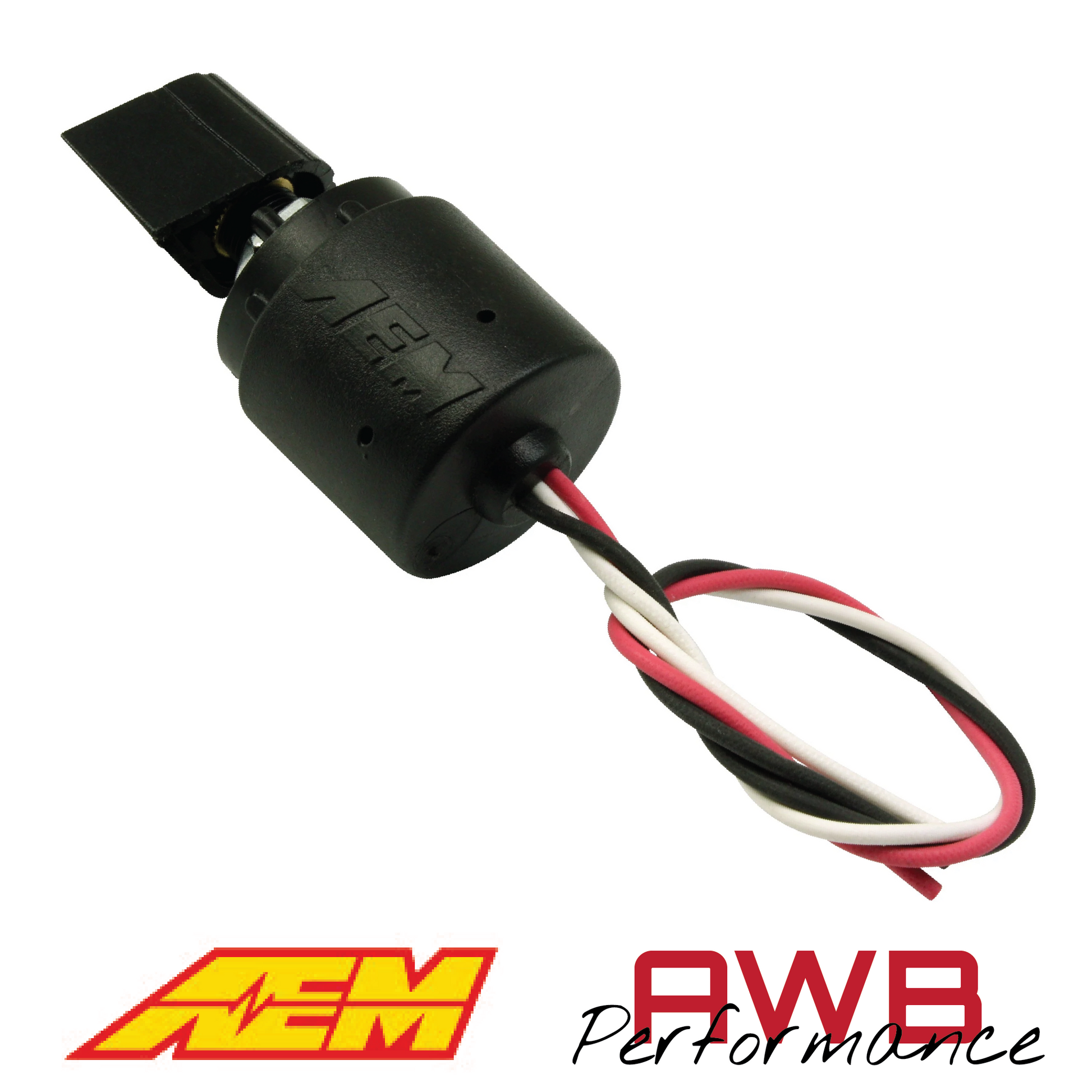

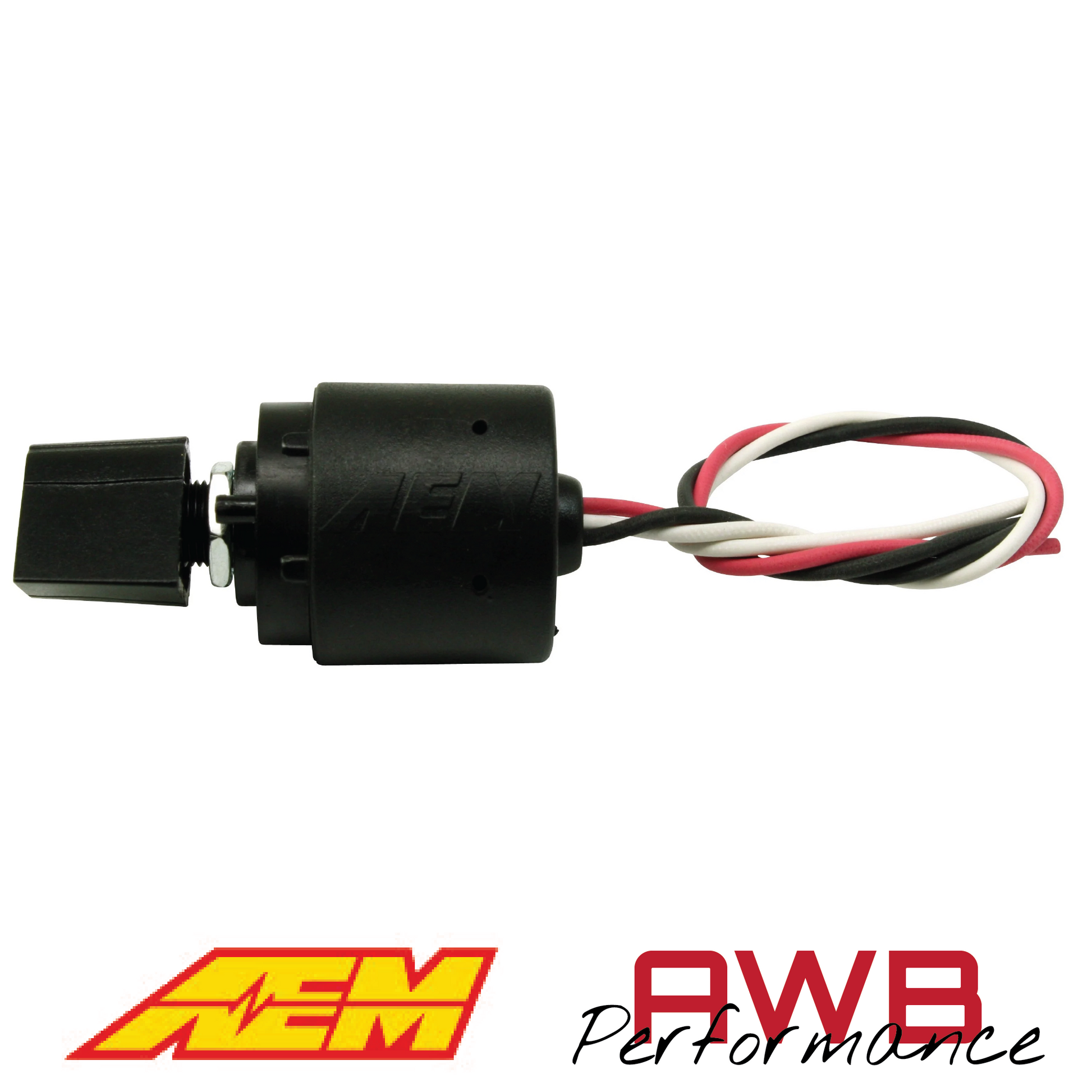

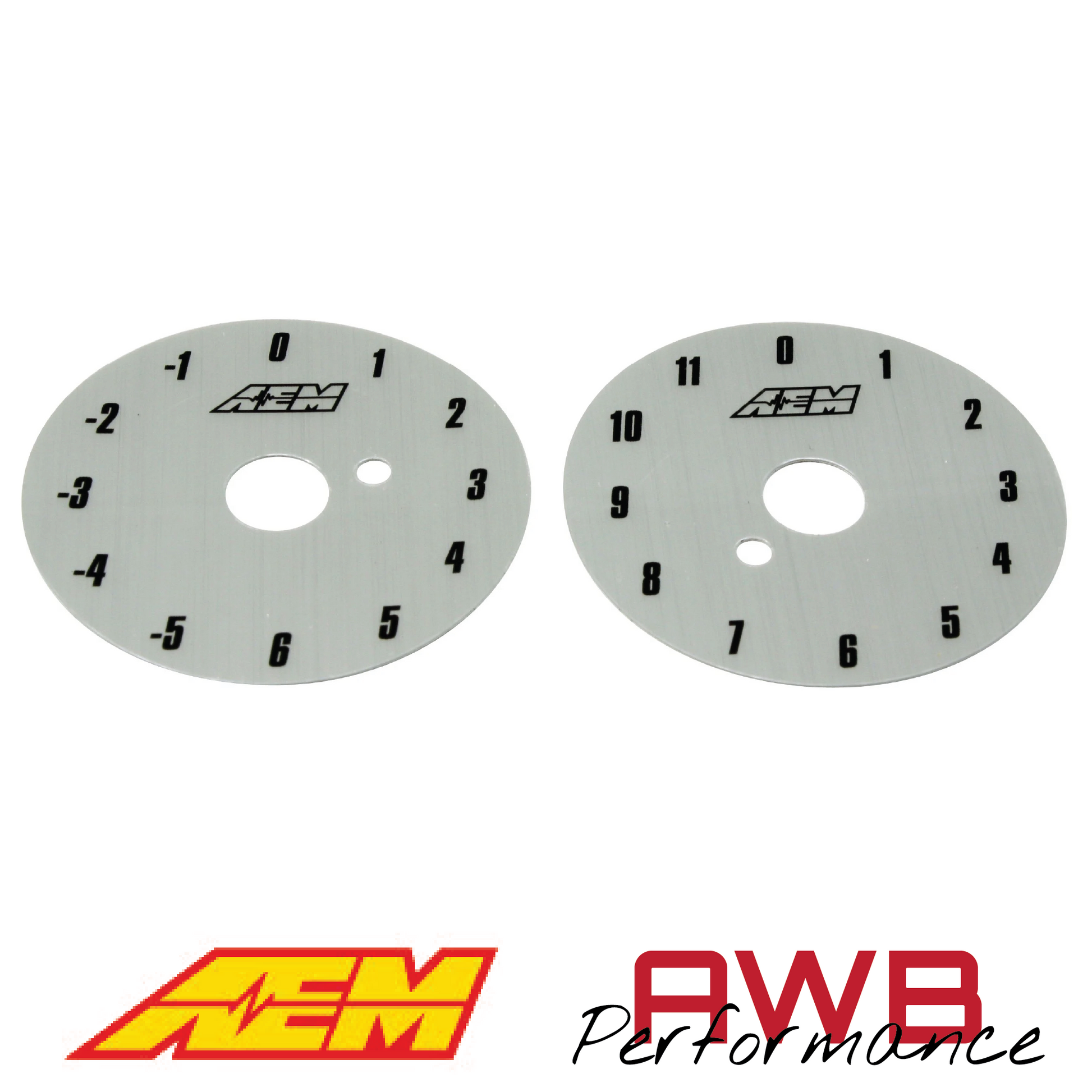

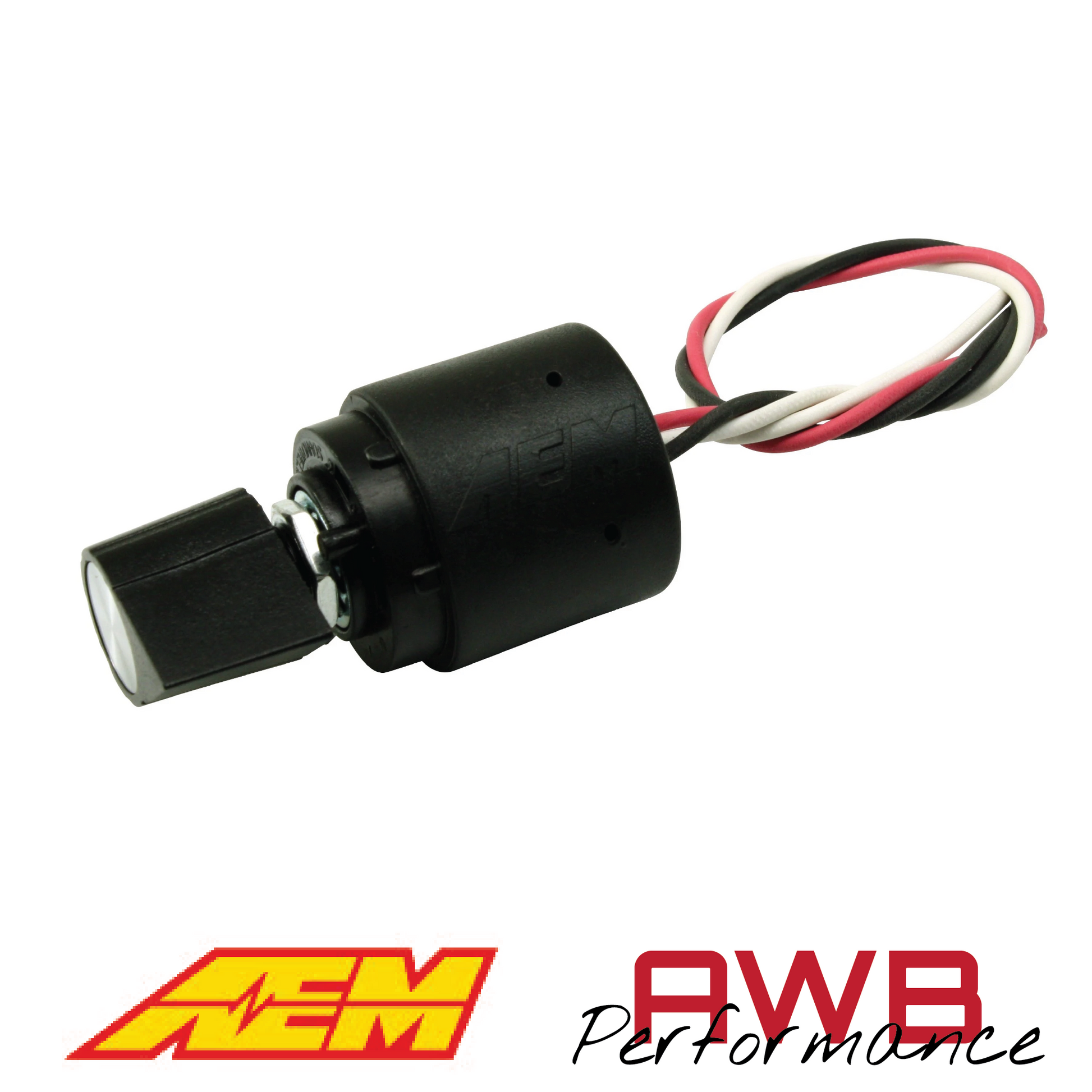

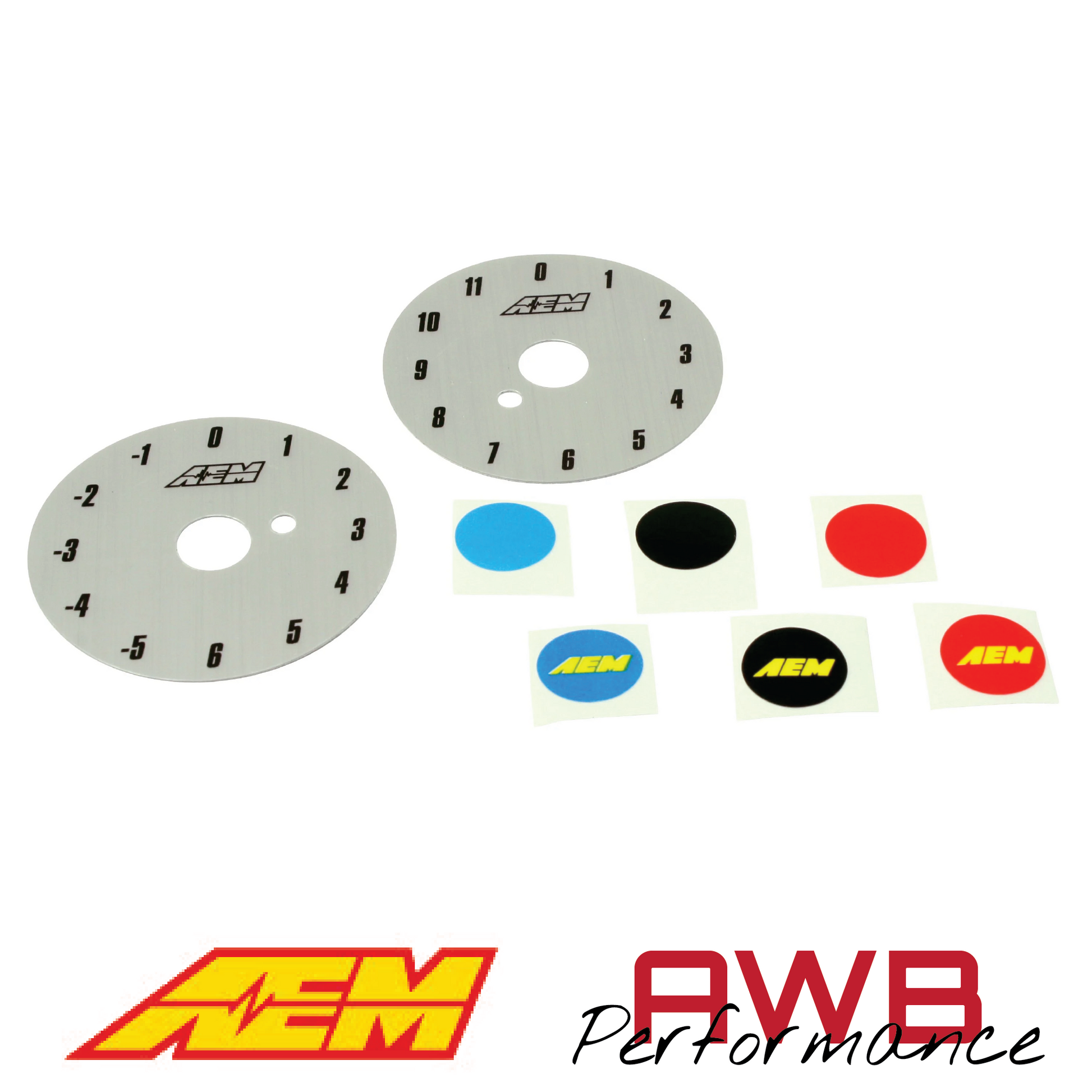

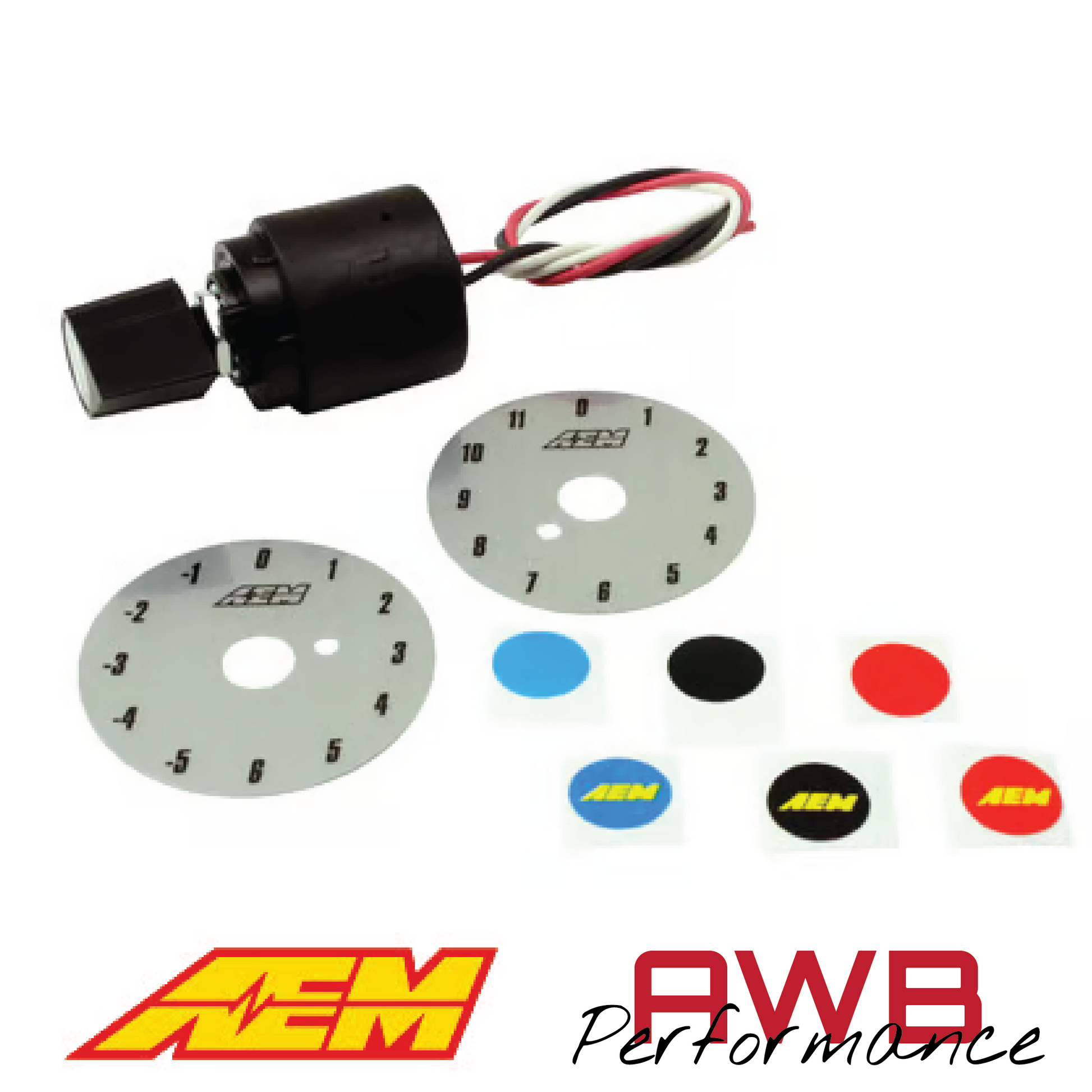

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.

Trim potentiometer can be used with virtually any engine management system

Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob

Adjusts a number of trims, including ignition timing, fuel, boost, etc.

Features:

• Total Resistance: 14.3KO
• Cycles Minimum: 10,000
• Positions: 12
• Degree Rotation: 330
• Mounting: 3/8" Hole
• Jam Nut: 1/2" Hex
• Knob Set Screw: 1/16" Allen
• Supply Current: 5 Vdc
• Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
